QT Compact Cable Grommets for QUICK systems
Slit Compact Cable Grommets
- Suitable for KEL-QUICK cable entry frames and QVT cable glands
- The QT range supports cable diameters from 1 to 15 mm
- They are used with the following cable entry frames: KEL-QUICK, QVT, QVT-CLICK, KEL-QTA
- When installing the grommets, the flat side should be facing the middle of the frame
- This allows the flat sides of adjacent grommets to match up and provide a secure seal
- Enable routing of pre-terminated cables through cable entry frames and split cable glands
- Material: Elastomer
- Colour: Grey (similar RAL 7035)
- Flame class: UL94-V0, self-extinguishing
- Temperature: -40°C to 100°C (static)
- Properties: Halogen-free, Silicone-free
- Mounting height: 2 mm
-
icotek 42503 | QT 3 Grey | GrommetQT Cable Grommet, Clamping Range: 3-4mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing -
icotek 42504 | QT 4 Grey | GrommetQT Cable Grommet, Clamping Range: 4-5mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
icotek 42505 | QT 5 Grey | GrommetQT Cable Grommet, Clamping Range: 5-6mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
icotek 42506 | QT 6 Grey | GrommetQT Cable Grommet, Clamping Range: 6-7mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
icotek 42507 | QT 7 Grey | GrommetQT Cable Grommet, Clamping Range: 7-8mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
icotek 42508 | QT 8 Grey | GrommetQT Cable Grommet, Clamping Range: 8-9mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
icotek 42509 | QT 9 Grey | GrommetQT Cable Grommet, Clamping Range: 9-10mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
icotek 42510 | QT 10 Grey | GrommetQT Cable Grommet, Clamping Range: 10-11mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
icotek 42511 | QT 11 Grey | GrommetQT Cable Grommet, Clamping Range: 11-12mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
icotek 42512 | QT 12 Grey | GrommetQT Cable Grommet, Clamping Range: 12-13mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
icotek 42513 | QT 13 Grey | GrommetQT Cable Grommet, Clamping Range: 13-14mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-

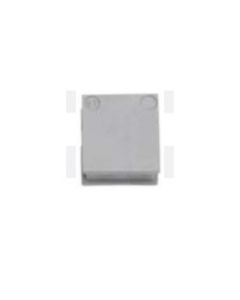

icotek 42540 | QTB Grey | GrommetQT Cable Grommet, Blank Grommet, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
