Polysnap IEC Connectors

Bulgin Polysnap IEC Connectors

  • Bulgins popular range of polysnap mains power inlet modules deliver a highly versatile and flexible solution to panel design.
  • Polysnap allows for  combinations of mains inlets and outlets, filtered inlets, switches, fuseholders, voltage selectors and indicators mounted in a choice of horizontal or vertical format bezels ready for quick snap-fit assembly.
  • The compact design sits in the minimum of panel area where space is at a premium and has a single rectangular mounting hole  allowing for easy installation for the mains power entry module.
  • To harmonize with Bulgin’s range of polysnap modules the polyflange range offers a flange fixing alternative for applications that suit the reliability of screw fixing.

Styles include the following:

  • C14, C14 FUSED INLETS, C16 FUSED INLETS, C20, OUTLETS SHEET F, C14 INLET/OUTLET, C14 FUSED Combinations with bezel options to include Snap to panel vertical, Snap to panel horizontal and flange mount vertical.
  • There are  neon switch variations and quick-connect contact terminations.
Read More

Items 409-420 of 1105

Set Descending Direction

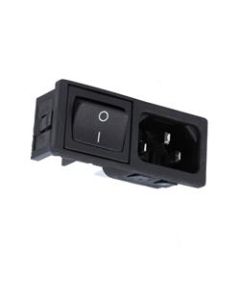

  1. BZM27/Z0000/68B | BZM27Z000068B | Bulgin IEC
    BZM27/Z0000/68B | BZM27Z000068B | Bulgin IEC
    Polysnap - C14 IEC Mini Bezel Inlet with a DP Hi Inrush Switch (I/O)
  2. BZM27/Z0000/A1/A | BZM27Z0000A1A | Polysnap IEC Inlet
    BZM27/Z0000/A1/A | BZM27Z0000A1A | Polysnap IEC Inlet
    Polysnap IEC Fused Power Inlet (6.3mm Tab) with single pole illuminated red marked switch, 4.8mm tab, 1.0mm panel thickness
  3. BZM27/Z0000/A1/B | BZM27Z0000A1B | Polysnap IEC Inlet
    BZM27/Z0000/A1/B | BZM27Z0000A1B | Polysnap IEC Inlet
    Polysnap IEC Fused Power Inlet (6.3mm Tab) with single pole illuminated red marked switch, 4.8mm tab, 1.5mm panel thickness
  4. BZM27/Z0000/A1/C | BZM27Z0000A1C | Polysnap IEC Inlet
    BZM27/Z0000/A1/C | BZM27Z0000A1C | Polysnap IEC Inlet
    Polysnap IEC Fused Power Inlet (6.3mm Tab) with single pole illuminated red marked switch, 4.8mm tab, 2.0mm panel thickness
  5. BZM27/Z0000/A1/D | BZM27Z0000A1D | Polysnap IEC Inlet
    BZM27/Z0000/A1/D | BZM27Z0000A1D | Polysnap IEC Inlet
    Polysnap IEC Fused Power Inlet (6.3mm Tab) with single pole illuminated red marked switch, 4.8mm tab, 3.0mm panel thickness
  6. BZM27/Z0000/A2/A | BZM27Z0000A2A | Polysnap IEC Inlet
    BZM27/Z0000/A2/A | BZM27Z0000A2A | Polysnap IEC Inlet
    Polysnap IEC Fused Power Inlet (6.3mm Tab) with single pole illuminated red marked switch, solder tab, 1.0mm panel thickness
  7. BZM27/Z0000/A2/B | BZM27Z0000A2B | Polysnap IEC Inlet
    BZM27/Z0000/A2/B | BZM27Z0000A2B | Polysnap IEC Inlet
    Polysnap IEC Fused Power Inlet (6.3mm Tab) with single pole illuminated red marked switch, solder tab, 1.5mm panel thickness
  8. BZM27/Z0000/A2/C | BZM27Z0000A2C | Polysnap IEC Inlet
    BZM27/Z0000/A2/C | BZM27Z0000A2C | Polysnap IEC Inlet
    Polysnap IEC Fused Power Inlet (6.3mm Tab) with single pole illuminated red marked switch, solder tab, 2.0mm panel thickness
  9. BZM27/Z0000/A2/D | BZM27Z0000A2D | Polysnap IEC Inlet
    BZM27/Z0000/A2/D | BZM27Z0000A2D | Polysnap IEC Inlet
    Polysnap IEC Fused Power Inlet (6.3mm Tab) with single pole illuminated red marked switch, solder tab, 3.0mm panel thickness
  10. BZM27/Z0000/A3/A | BZM27Z0000A3A | Polysnap IEC Inlet
    BZM27/Z0000/A3/A | BZM27Z0000A3A | Polysnap IEC Inlet
    Polysnap IEC Non-Fused Power 6.3mm Inlet with double pole illuminated red marked switch, 4.8mm tab, 1.0mm panel thickness
  11. BZM27/Z0000/A3/B | BZM27Z0000A3B | Polysnap IEC Inlet
    BZM27/Z0000/A3/B | BZM27Z0000A3B | Polysnap IEC Inlet
    Polysnap IEC Non-Fused Power 6.3mm Inlet with double pole illuminated red marked switch, 4.8mm tab, 1.5mm panel thickness
  12. BZM27/Z0000/A3/C | BZM27Z0000A3C | Polysnap IEC Inlet
    BZM27/Z0000/A3/C | BZM27Z0000A3C | Polysnap IEC Inlet
    Polysnap IEC Non-Fused Power 6.3mm Inlet with double pole illuminated red marked switch, 4.8mm tab, 2.0mm panel thickness
