Polysnap IEC Connectors

Bulgin Polysnap IEC Connectors

  • Bulgins popular range of polysnap mains power inlet modules deliver a highly versatile and flexible solution to panel design.
  • Polysnap allows for  combinations of mains inlets and outlets, filtered inlets, switches, fuseholders, voltage selectors and indicators mounted in a choice of horizontal or vertical format bezels ready for quick snap-fit assembly.
  • The compact design sits in the minimum of panel area where space is at a premium and has a single rectangular mounting hole  allowing for easy installation for the mains power entry module.
  • To harmonize with Bulgin’s range of polysnap modules the polyflange range offers a flange fixing alternative for applications that suit the reliability of screw fixing.

Styles include the following:

  • C14, C14 FUSED INLETS, C16 FUSED INLETS, C20, OUTLETS SHEET F, C14 INLET/OUTLET, C14 FUSED Combinations with bezel options to include Snap to panel vertical, Snap to panel horizontal and flange mount vertical.
  • There are  neon switch variations and quick-connect contact terminations.
Read More

Items 457-468 of 1105

Set Descending Direction

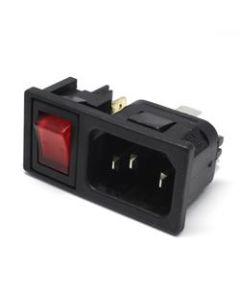

  1. BZM28/Z0000/56B | BZM28Z000056B | Bulgin IEC
    BZM28/Z0000/56B | BZM28Z000056B | Bulgin IEC
    Polysnap - C14 IEC Mini Bezel Inlet with a SP Red Neon Switch

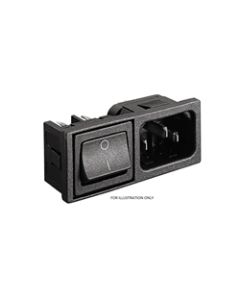

  2. BZM28/Z0000/57/C | BZM28Z000057C | Polysnap IEC Inlet
    BZM28/Z0000/57/C | BZM28Z000057C | Polysnap IEC Inlet
    Polysnap IEC Fused Power 2.8mm Inlet with double pole marked switch, 4.8mm tab, 2.0mm panel thickness
  3. BZM28/Z0000/57A | BZM28Z000057A | Bulgin IEC
    BZM28/Z0000/57A | BZM28Z000057A | Bulgin IEC
    Polysnap - C14 IEC Mini Bezel Inlet with a DP Switch (I/O)
  4. BZM28/Z0000/57B | BZM28Z000057B | Bulgin IEC
    BZM28/Z0000/57B | BZM28Z000057B | Bulgin IEC
    Polysnap - C14 IEC Mini Bezel Inlet with a DP Switch (I/O)
  5. BZM28/Z0000/57D | BZM28Z000057D | Bulgin IEC
    BZM28/Z0000/57D | BZM28Z000057D | Bulgin IEC
    Polysnap - C14 IEC Mini Bezel Inlet with a DP Switch (I/O)
  6. BZM28/Z0000/58/A | BZM28Z000058A | Polysnap IEC Inlet
    BZM28/Z0000/58/A | BZM28Z000058A | Polysnap IEC Inlet
    Polysnap IEC Fused Power 2.8mm Inlet with double pole marked switch, solder tab, 1.0mm panel thickness
  7. BZM28/Z0000/58/C | BZM28Z000058C | Polysnap IEC Inlet
    BZM28/Z0000/58/C | BZM28Z000058C | Polysnap IEC Inlet
    Polysnap IEC Fused Power 2.8mm Inlet with double pole marked switch, solder tab, 2.0mm panel thickness
  8. BZM28/Z0000/58/D | BZM28Z000058D | Polysnap IEC Inlet
    BZM28/Z0000/58/D | BZM28Z000058D | Polysnap IEC Inlet
    Polysnap IEC Fused Power 2.8mm Inlet with double pole marked switch, solder tab, 3.0mm panel thickness

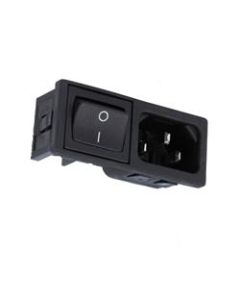

  9. BZM28/Z0000/58B | BZM28Z000058B | Bulgin IEC
    BZM28/Z0000/58B | BZM28Z000058B | Bulgin IEC
    Polysnap - C14 IEC Mini Bezel Inlet with a DP Switch (I/O)
  10. BZM28/Z0000/59/A | BZM28Z000059A | Polysnap IEC Inlet
    BZM28/Z0000/59/A | BZM28Z000059A | Polysnap IEC Inlet
    Polysnap IEC Fused Power 2.8mm Inlet with double pole illuminated red switch, 4.8mm tab, 1.0mm panel thickness
  11. BZM28/Z0000/59/B | BZM28Z000059B | Polysnap IEC Inlet
    BZM28/Z0000/59/B | BZM28Z000059B | Polysnap IEC Inlet
    Polysnap IEC Fused Power 2.8mm Inlet with double pole illuminated red switch, 4.8mm tab, 1.5mm panel thickness
  12. BZM28/Z0000/59/C | BZM28Z000059C | Polysnap IEC Inlet
    BZM28/Z0000/59/C | BZM28Z000059C | Polysnap IEC Inlet
    Polysnap IEC Fused Power 2.8mm Inlet with double pole illuminated red switch, 4.8mm tab, 2.0mm panel thickness
