Polysnap IEC Connectors

Bulgin Polysnap IEC Connectors

  • Bulgins popular range of polysnap mains power inlet modules deliver a highly versatile and flexible solution to panel design.
  • Polysnap allows for  combinations of mains inlets and outlets, filtered inlets, switches, fuseholders, voltage selectors and indicators mounted in a choice of horizontal or vertical format bezels ready for quick snap-fit assembly.
  • The compact design sits in the minimum of panel area where space is at a premium and has a single rectangular mounting hole  allowing for easy installation for the mains power entry module.
  • To harmonize with Bulgin’s range of polysnap modules the polyflange range offers a flange fixing alternative for applications that suit the reliability of screw fixing.

Styles include the following:

  • C14, C14 FUSED INLETS, C16 FUSED INLETS, C20, OUTLETS SHEET F, C14 INLET/OUTLET, C14 FUSED Combinations with bezel options to include Snap to panel vertical, Snap to panel horizontal and flange mount vertical.
  • There are  neon switch variations and quick-connect contact terminations.
Read More

Items 493-504 of 1105

Set Descending Direction
  1. BZM28/Z0000/65/D | BZM28Z000065D | Polysnap IEC Inlet
    BZM28/Z0000/65/D | BZM28Z000065D | Polysnap IEC Inlet
    Polysnap IEC Non-Fused Power 2.8mm Inlet with double pole high inrush switch, 4.8mm tab (S.P Format), 3.0mm panel thickness
  2. BZM28/Z0000/68/B | BZM28Z000068B | Polysnap IEC Inlet
    BZM28/Z0000/68/B | BZM28Z000068B | Polysnap IEC Inlet
    Polysnap IEC Non-Fused Power 2.8mm Inlet with double pole high inrush marked switch, 4.8mm tab (S.P Format), 1.5mm panel thickness
  3. BZM28/Z0000/68/C | BZM28Z000068C | Polysnap IEC Inlet
    BZM28/Z0000/68/C | BZM28Z000068C | Polysnap IEC Inlet
    Polysnap IEC Non-Fused Power 2.8mm Inlet with double pole high inrush marked switch, 4.8mm tab (S.P Format), 2.0mm panel thickness
  4. BZM28/Z0000/68/D | BZM28Z000068D | Polysnap IEC Inlet
    BZM28/Z0000/68/D | BZM28Z000068D | Polysnap IEC Inlet
    Polysnap IEC Non-Fused Power 2.8mm Inlet with double pole high inrush marked switch, 4.8mm tab (S.P Format), 3.0mm panel thickness

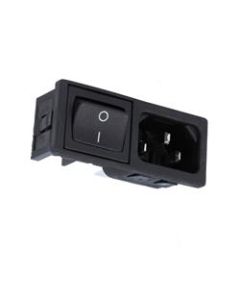

  5. BZM28/Z0000/68A | BZM28Z000068A | Bulgin IEC
    BZM28/Z0000/68A | BZM28Z000068A | Bulgin IEC
    Polysnap - C14 IEC Mini Bezel Inlet with a DP Hi Inrush Switch (I/O)
  6. BZM28/Z0000/A1/A | BZM28Z0000A1A | Polysnap IEC Inlet
    BZM28/Z0000/A1/A | BZM28Z0000A1A | Polysnap IEC Inlet
    Polysnap IEC Non-Fused Power 2.8mm Inlet with single pole illuminated red marked switch, 4.8mm tab, 1.0mm panel thickness
  7. BZM28/Z0000/A1/B | BZM28Z0000A1B | Polysnap IEC Inlet
    BZM28/Z0000/A1/B | BZM28Z0000A1B | Polysnap IEC Inlet
    Polysnap IEC Non-Fused Power 2.8mm Inlet with single pole illuminated red marked switch, 4.8mm tab, 1.5mm panel thickness
  8. BZM28/Z0000/A1/C | BZM28Z0000A1C | Polysnap IEC Inlet
    BZM28/Z0000/A1/C | BZM28Z0000A1C | Polysnap IEC Inlet
    Polysnap IEC Non-Fused Power 2.8mm Inlet with single pole illuminated red marked switch, 4.8mm tab, 2.0mm panel thickness
  9. BZM28/Z0000/A1/D | BZM28Z0000A1D | Polysnap IEC Inlet
    BZM28/Z0000/A1/D | BZM28Z0000A1D | Polysnap IEC Inlet
    Polysnap IEC Power 2.8mm Inlet with single pole illuminated red marked switch, 4.8mm tab, 3.0mm panel thickness
  10. BZM28/Z0000/A2/A | BZM28Z0000A2A | Polysnap IEC Inlet
    BZM28/Z0000/A2/A | BZM28Z0000A2A | Polysnap IEC Inlet
    Polysnap IEC Power 2.8mm Inlet with single pole illuminated red marked switch, solder tab, 1.0mm panel thickness
  11. BZM28/Z0000/A2/B | BZM28Z0000A2B | Polysnap IEC Inlet
    BZM28/Z0000/A2/B | BZM28Z0000A2B | Polysnap IEC Inlet
    Polysnap IEC Power 2.8mm Inlet with single pole illuminated red marked switch, solder tab, 1.5mm panel thickness
  12. BZM28/Z0000/A2/C | BZM28Z0000A2C | Polysnap IEC Inlet
    BZM28/Z0000/A2/C | BZM28Z0000A2C | Polysnap IEC Inlet
    Polysnap IEC Power 2.8mm Inlet with single pole illuminated red marked switch, solder tab, 2.0mm panel thickness
