Polysnap IEC Connectors
Bulgin Polysnap IEC Connectors
- Bulgins popular range of polysnap mains power inlet modules deliver a highly versatile and flexible solution to panel design.
- Polysnap allows for combinations of mains inlets and outlets, filtered inlets, switches, fuseholders, voltage selectors and indicators mounted in a choice of horizontal or vertical format bezels ready for quick snap-fit assembly.
- The compact design sits in the minimum of panel area where space is at a premium and has a single rectangular mounting hole allowing for easy installation for the mains power entry module.
- To harmonize with Bulgin’s range of polysnap modules the polyflange range offers a flange fixing alternative for applications that suit the reliability of screw fixing.
Styles include the following:
- C14, C14 FUSED INLETS, C16 FUSED INLETS, C20, OUTLETS SHEET F, C14 INLET/OUTLET, C14 FUSED Combinations with bezel options to include Snap to panel vertical, Snap to panel horizontal and flange mount vertical.
- There are neon switch variations and quick-connect contact terminations.
-
BZM42/Z000/57/D | BZM42Z00057D | Polysnap IEC InletPolysnap IEC Fused Power 4.8mm Inlet with double pole marked switch, 4.8mm tab, 3.0mm panel thickness -
BZM42/Z000/58/A | BZM42Z00058A | Polysnap IEC InletPolysnap IEC Fused Power 4.8mm Inlet with double pole marked switch, solder tab, 1.0mm panel thickness
-
BZM42/Z000/58/C | BZM42Z00058C | Polysnap IEC InletPolysnap IEC Fused Power Inlet (4.8mm Tab) with double pole marked switch, solder tab, 2.0mm panel thickness
-
BZM42/Z000/58/D | BZM42Z00058D | Polysnap IEC InletPolysnap IEC Non-Fused Power 4.8mm Inlet with double pole marked switch, solder tab, 3.0mm panel thickness
-
BZM42/Z000/59/A | BZM42Z00059A | Polysnap IEC InletPolysnap IEC Non-Fused Power 4.8mm Inlet with double pole illuminated red switch, 4.8mm tab, 1.0mm panel thickness
-
BZM42/Z000/59/D | BZM42Z00059D | Polysnap IEC InletPolysnap IEC Non-Fused Power 4.8mm Inlet with double pole illuminated red switch, 4.8mm tab, 1.0mm panel thickness
-

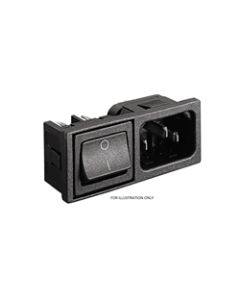

BZM42/Z000/60/A | BZM42Z00060A | Polysnap IEC InletPolysnap IEC Non-Fused Power 4.8mm Inlet with double pole illuminated red switch, solder tab, 1.0mm panel thickness -
BZM42/Z000/60/B | BZM42Z00060B | Polysnap IEC InletPolysnap IEC Non-Fused Power 4.8mm Inlet with double pole illuminated red switch, solder tab, 1.5mm panel thickness
-
BZM42/Z000/60/C | BZM42Z00060C | Polysnap IEC InletPolysnap IEC Non-Fused Power 4.8mm Inlet with double pole illuminated red switch, solder tab, 2.0mm panel thickness
-
BZM42/Z000/60/D | BZM42Z00060D | Polysnap IEC InletPolysnap IEC Non-Fused Power 4.8mm Inlet with double pole illuminated red switch, solder tab, 3.0mm panel thickness
-
BZM42/Z000/61/A | BZM42Z00061A | Polysnap IEC InletPolysnap IEC Fused Power 4.8mm Inlet with single pole illuminated green switch, 4.8mm tab, 1.0mm panel thickness
-
BZM42/Z000/61/B | BZM42Z00061B | Polysnap IEC InletPolysnap IEC Fused Power 4.8mm Inlet with single pole illuminated green switch, 4.8mm tab, 1.5mm panel thickness
