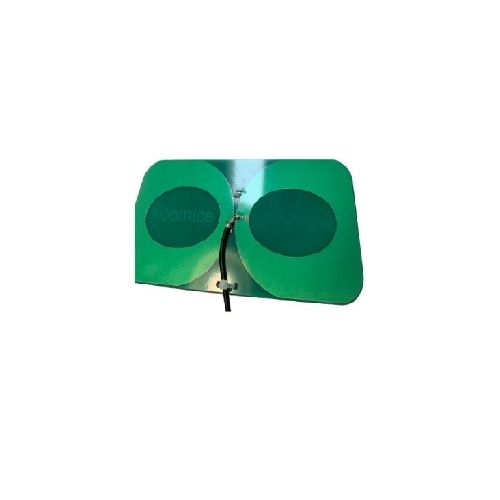

CUADO L LTE PCB | Wideband PCB Antenna
High efficiency FR4 antenna designed for global approved network use, LTE (EU & NORTH AMERICA), CELLULAR (2G, 3G)
| Complete Electronics Part No. | CUADO L LTE PCB |
|---|---|
| Manufacturers Part No. | CUADOLLTEPCB |
| Antenna Type: | Self Adhesive |
Description
Wideband PCB Antenna
Secured in to position with a self adhesive fixing strip
- LTE (EU & NORTH AMERICA), CELLULAR (2G, 3G)
- High efficiency FR4 antenna designed for global approved network use
- RoHS 2011/65/EU & RoHS3 (2015/863/EU compliant)
- Dimensions: 147mm x 73mm x 1.5mm (Excluding Self Adhesive Fixing)
- Weight: 27g (Element & casing)
- Mounting: 3M Self Adhesive Fixing Pad
- Temperature Range:-40°C to +85°C
- Impedance: 50ohm
- Polarisation: Linear
- Radiation Pattern: Omni directional
- Return Loss: ≤ 1.9:1 (All Bands)
- Radiator Type: Dipole
- Cable type: RG174 / RG316 / RG178 / LL100 50 Ohm Low Loss
- Cable Length: According to customer specification
- Connector: According to customer specification
