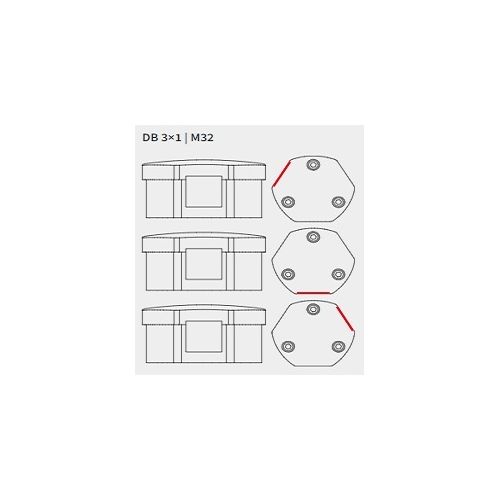

DB 3×1 | M32 | 54300 | Distribution Box for 3 x KT small

DB Distribution Box - split 360° cable entry system for cables with and without connectors, Easy distribution of cables in a 360° angle, For 3 x KT Small
More Information
Complete Electronics Part No. 54300
Manufacturers Part No. 54300
Description

DB Distribution Box - split 360°

For cables with and without connectors

  • For max. no. of cables: 12
  • Max. cable diameter: 15mm
  • Length: 72mm
  • Width: 67mm
  • Height: 53mm
  • Mounting Height: 39.4mm
  • Cut out size, metric: M32
  • Thread: M32 x 1.5
  • Thread length: 13,6mm
  • Suitable for grommets: 3 x KT Small
  • Strain relief according to EN 62444
  • Material: Polyamide
  • Operating Temperature: -40°C to 140°C
  • Vibration proof
  • Silicone free
  • Halogen free
  • Fastens with locknut
  • IP rating (EN 60529): IP54
  • Part Number: 54300
  • EAN: 4251269332524
  • Package quantity: 5
  • Hexagonal locknut included in the delivery
