EAGLE40-4F | 942333001 | Router

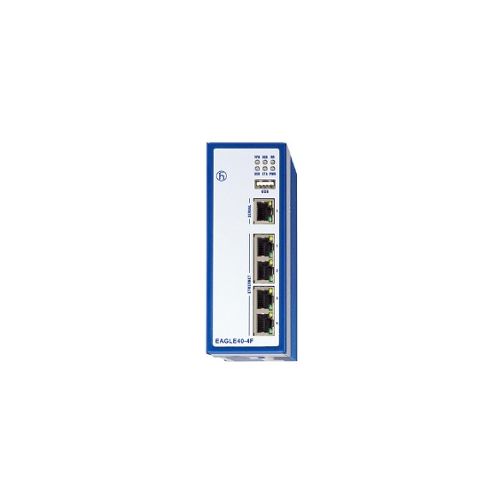

The Hirschmann EAGLE40-4F is a next-generation, field-level industrial firewall with four (4) Gigabit Ethernet ports with cybersecurity capability
| Complete Electronics Part No. | 942333001 |
|---|---|
| Manufacturers Part No. | 942333001 |
Description
942333001 | Eagle 40-4F Firewall / Router
Industrial firewall with four Gigabit Ethernet ports
Port type and quantity: 4 x GbE RJ45 ports
Port Speed: 10/100/1000 Mbit/s RJ45
LEDs (Power, Link Status, Data, Status)
Signal Contact (24 V DC/1 A)
Log File, Syslog
Configuration check RMON (Statistic),
Hazardous locations: ISA-12.12.-01 Class 1 Div. 2 – Haz. Loc, ATEX-95 Category 3G (Zone 2)
USB interface: 1 x USB 2.0 port
Operating temperature -40°C to +70 °C
Serial Interface: 1 x RJ45 port (RS-232, RS-422, RS-485)
Power Supply: 1 x plug-in terminal block, 10-pin
CPU: NXP i.MX 8M Mini ARMv8 64-bit Cortex-A53 @ 1.6GHz
Memory: LPDDR4 2 GB
Storage: 8 GB eMMC storage
Operating Voltage: Dual 10 ~ 30 V DC
Power consumption: Minimum – 2.5W, Maximum – 12W
Multipoint VPN
Stateful inspection firewall
Firewall rules (incoming/outgoing, management)
Operating temperature: -40-+70 °C
Dimensions (WxHxD): 48 x 137 x 105 mm
Weight: 613 g
Housing Material: Aluminum with DIN clip
Mounting: DIN Rail 35 mm
Protection class IP30
Warranty: 5 years
Hirschmann part number: 942333001
