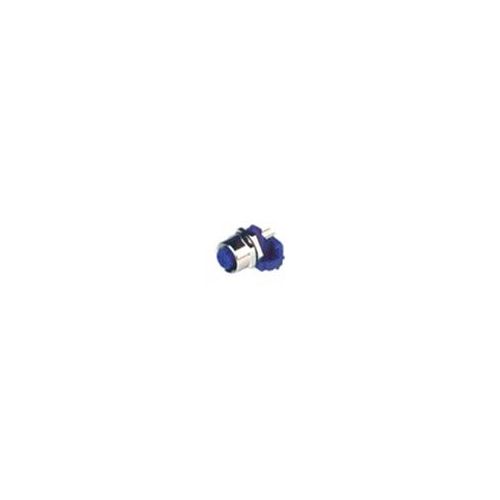

EF12L Octopus | EF12LOctopus | 934451021 | Connector
Industrial ETHERNET M12 socket,"D"-coded according IEC 61076-2-101, 5 Poles, for combined front panels and circuit board installation
| Complete Electronics Part No. | EF12LOctopus |
|---|---|
| Manufacturers Part No. | EF12L Octopus |
| Type: | Panel Mount Connector |
| Termination: | PCB Mount |
| Mounting: | Panel Mount |
| Coded Option (Circular) | D |
| Male/Female: | Female |
| Number of poles | 4 |
| Protocol: | Industrial Ethernet |
| Rated Current: | 4A |
| Voltage: | AC/DC 150V |
| IP Rating: | IP65 / 67 |
Description
EF12L Octopus
Industrial ETHERNET M12 socket
- "D"-coded according IEC 61076-2-101 for combined front panels and circuit board installation
- Number of contacts 4
- Rated current 4 amps
