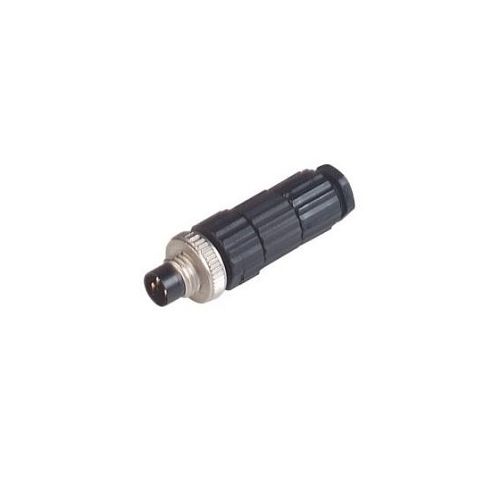

ELST 3008 V | 933406100 | Connector
3 Pole Cable Plug, Suitable cables: diameter 4 mm to 5 mm / 0.14 mm2 to 0.34 mm2
| Complete Electronics Part No. | 933406100 |
|---|---|
| Manufacturers Part No. | 933 406-100 |
| Type: | Cable Plug |
| Socket / PIN | PIN |
| Male/Female: | Male |
| Cable Entry: | Straight |
| Number of poles | 3 |
| Rated Current: | 3 A (2 A at 0.14 mm2 ) |
| Voltage: | AC/DC 60 V |
| IP Rating: | IP67 |
Description
ELST 3008 V
Straight cable plug, unassembled,
- Male,
- 3 pole
- Cable gland: M 9.5 x 1
- Strain relief by means of clamping cage
- Suitable cables: diameter 4 mm to 5 mm / 0.14 mm2 to 0.34 mm2
- Rated current: 3 A (2 A at 0.14 mm2)
- Rated voltage: AC/DC 60 V
