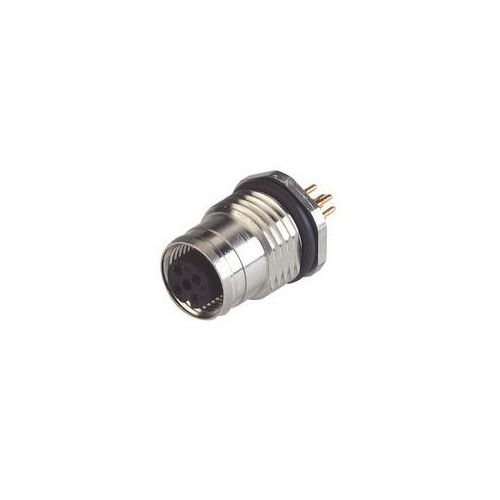

EM12HL5AFIX Au | 934537202 | Connector
Appliance socket for front panel and back-wall mounting with circuit board pins
| Complete Electronics Part No. | 934 537-202 |
|---|---|
| Manufacturers Part No. | 934537202 |
| Type: | Appliance Socket |
| Termination: | PCB Mount |
| Mounting: | Rear Mounting |
| PCB Connector Mounting | PCB Straight |
| Male/Female: | Female M12 |
| Number of poles | 5 |
| Rated Current: | 4A |
| Voltage: | AC/DC 50 V |
| IP Rating: | IP67 |
Description
EM12HL5AFIX Au
Appliance socket
- For front panel and back-wall mounting with circuit board pins
- Front mounting thread
- M16 x 1.5; screw- / M12 push-pull Fast-Lock
- O-Ring included
- Type of contact female
- Number of contacts 5
- This part is no longer available. Please contact Electroustic on 01908 307200 for an alternative.
