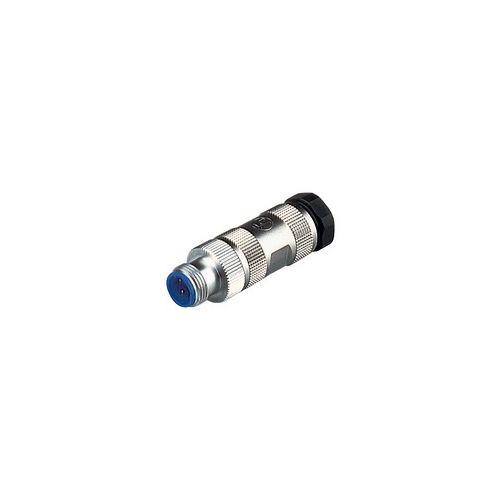

EM12S OCTOPUS | 934445001 | Connector
4 Pole male Field attachable Industrial ETHERNET, M12 connector
| Complete Electronics Part No. | 934 445-001 |
|---|---|
| Manufacturers Part No. | 934445001 |
| Type: | Field Attachable Connector |
| Termination: | IDC |
| Coded Option (Circular) | D |
| Male/Female: | Male M12 |
| Cable Entry: | Straight |
| Number of poles | 4 |
| Rated Current: | 4A |
| Voltage: | AC/DC 250V |
| IP Rating: | IP67 |
Description
EM12S OCTOPUS
Field attachable Industrial ETHERNET M12 connector
- "D"-coded according, IEC 61076-2-101
- Male
- 4 pole
- Conductor size: AWG 24 - AWG 22
- Cable specification: stranded wire/solid wire
- Suitable cables: diameter 6.0 mm to 8.0 mm
- Rated current: 4 A (Derating)
