EXP-0921/03/P | EXP092103P | Bulgin Connector

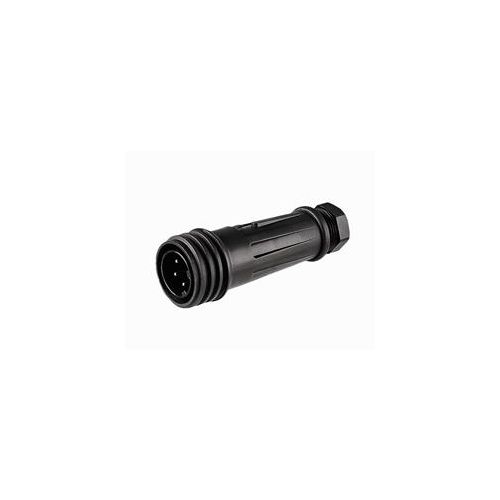

EXP Series EXPlora 3 Pole Male In-Line Flex Cable Connector
More Information
Complete Electronics Part No EXP092103P
Manufacturers Part No. EXP-0921/03/P
Type Cable Plug
Mounting Cable
Number of poles 3
Termination Screw
Male/Female Male
Housing Construction Plastic
Cable Entry Straight
Cable Diameter 13-15mm, 7-13mm with additional gland pack
Rated Voltage 600V
Rated Current 18A
IP Rating IP68
Description

EXP-0921/03/P

EXP Series EXPlora 3 Pole Male In-Line Flex Cable Connector

  • ATEX approval for Zone 2 & 22 applications
  • Voltage: 600Vac/dc
  • Current: 18Amps
  • Gender: Male
  • Contact: Pins
  • Termination: Screw
  • Temperature Range -20 °C/+55°C
  • IP Rating: IP68 when mated
  • Accepts 13-15mm cable dia. as standard & 7-13mm with optional gland pack
  • Mates with EXP-0911,EXP-A911 ranges
  • Accessory: Sealing Cap EXP-0991 & Gland Pack EXP-0980
