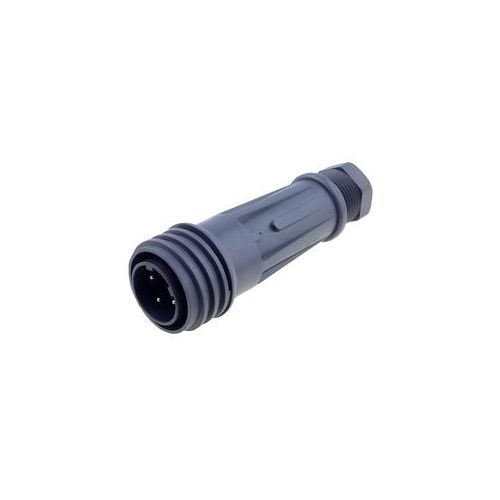

EXP-0921/04/P | EXP092104P | Bulgin Connector
EXP Series EXPlora 4 Pole Male In-Line Flex Cable Connector
| Complete Electronics Part No. | EXP092104P |
|---|---|
| Manufacturers Part No. | EXP-0921/04/P |
| Type: | Cable Plug |
| Mounting: | Cable |
| Number of poles | 4 |
| Termination: | Screw |
| Male/Female: | Male |
| Housing Construction: | Plastic |
| Cable Entry: | Straight |
| Cable Diameter | 13-15mm, 7-13mm with additional gland pack |
| Rated Voltage: | 600V |
| Rated Current: | 18A |
| IP Rating: | IP68 |
Description
EXP-0921/04/P
EXP Series EXPlora 4 Pole Male In-Line Flex Cable Connector
- ATEX approval for Zone 2 & 22 applications
- Voltage: 600Vac/dc
- Current: 18Amps
- Gender: Male
- Contact: Pins
- Termination: Screw
- Temperature Range -20 °C/+55°C
- IP Rating: IP68 when mated
- Accepts 13-15mm cable dia. as standard & 7-13mm with optional gland pack
- Mates with EXP-0911,EXP-A911 ranges
- Accessory: Sealing Cap EXP-0991 & Gland Pack EXP-0980
