EXP-0941/03/S | EXP094103S | Bulgin | Connector

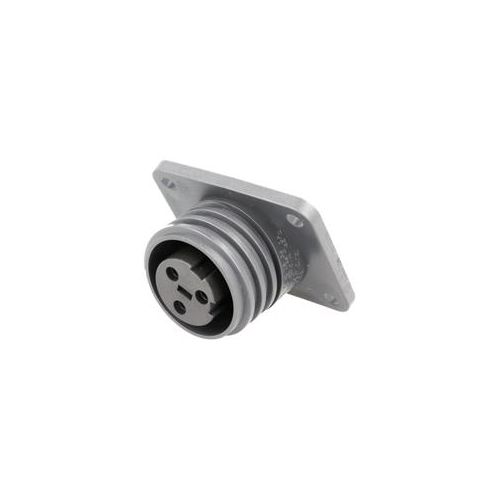

EXP Series EXPlora 3 Pole Female Flange Mounting Connector
| Complete Electronics Part No. | EXP094103S |
|---|---|
| Manufacturers Part No. | EXP-0941/03/S |
| Type: | Panel Mount Connector |
| Mounting: | Flange Fixing |
| Number of poles | 3 |
| Termination: | Screw |
| Male/Female: | Female |
| Housing Construction: | Plastic |
| Rated Voltage: | 600V |
| Rated Current: | 18A |
| IP Rating: | IP68 |
Description
EXP-0941/03/S
EXP Series EXPlora 3 Pole Female Flange Mounting Connector
- ATEX approval for Zone 2 & 22 applications
- Voltage: 600Vac/dc
- Current: 18Amps
- Gender: Female
- Contact: Sockets
- Termination: Screw
- Temperature Range -20 °C/+55°C
- IP Rating: IP68 when mated
- Mates with EXP-0911,EXP-A911 ranges
- Accessory: Sealing Cap EXP-0992
