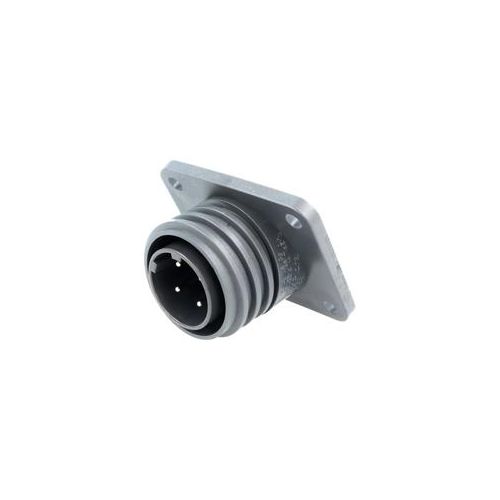

EXP-0941/04/P | EXP094104P | Bulgin Connector

EXP Series EXPlora 4 Pole Male Flange Mounting Connector
More Information
Complete Electronics Part No. EXP094104P
Manufacturers Part No. EXP-0941/04/P
Type: Panel Mount Connector
Mounting: Flange Fixing
Number of poles 4
Termination: Screw
Male/Female: Male
Housing Construction: Plastic
Rated Voltage: 600V
Rated Current: 18A
IP Rating: IP68
Description

EXP-0941/04/P

EXP Series EXPlora 4 Pole Male Flange Mounting Connector

  • ATEX approval for Zone 2 & 22 applications
  • Voltage: 600Vac/dc
  • Current: 18Amps
  • Gender: Male
  • Contact: Pins
  • Termination: Screw
  • Temperature Range -20 °C/+55°C
  • IP Rating: IP68 when mated
  • Mates with EXP-0911,EXP-A911 ranges

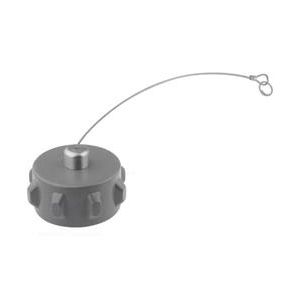

  • Accessory: Sealing Cap EXP-0992
