EXP-0941/05/P | EXP094105P | Bulgin | Connector

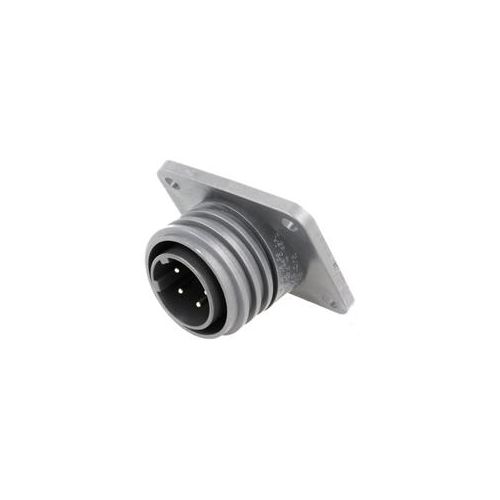

EXP Series EXPlora 5 Pole Male Flange Mounting Connector
| Complete Electronics Part No. | EXP094105P |
|---|---|
| Manufacturers Part No. | EXP-0941/05/P |
| Type: | Panel Mount Connector |
| Mounting: | Flange Fixing |
| Number of poles | 5 |
| Termination: | Screw |
| Male/Female: | Male |
| Housing Construction: | Plastic |
| Rated Voltage: | 600V |
| Rated Current: | 18A |
| IP Rating: | IP68 |
Description
EXP-0941/05/P
EXP Series EXPlora 5 Pole Male Flange Mounting Connector
- ATEX approval for Zone 2 & 22 applications
- Voltage: 600Vac/dc
- Current: 18Amps
- Gender: Male
- Contact: Pins
- Termination: Screw
- Temperature Range -20 °C/+55°C
- IP Rating: IP68 when mated
- Mates with EXP-0911,EXP-A911 ranges
- Accessory: Sealing Cap EXP-0992
