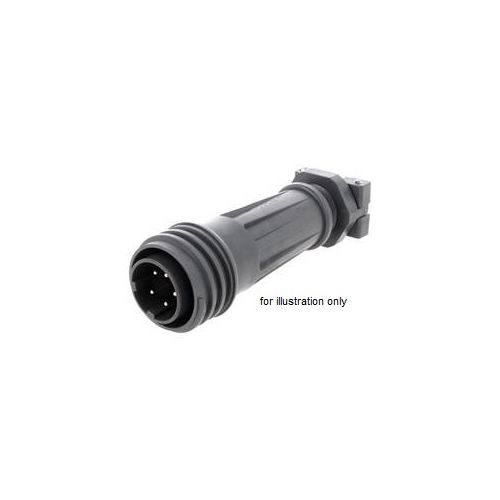

EXP-A921/04/P | EXPA92104P | Bulgin Connector

EXP Series EXPlora 4 Pole Male In-Line Flex Cable Connector
More Information
Complete Electronics Part No. EXPA92104P
Manufacturers Part No. EXP-A921/04/P
Type: Cable Plug
Mounting: Cable
Number of poles 4
Termination: Screw
Male/Female: Male
Housing Construction: Plastic
Cable Entry: Straight
Cable Diameter 20-22mm, 14-20mm with additional gland pack
Rated Voltage: 600V
Rated Current: 18A
IP Rating: IP68
Description

EXP-A921/04/P

EXP Series EXPlora 4 Pole Male In-Line Flex Cable Connector

  • ATEX approval for Zone 2 & 22 applications
  • Voltage: 600Vac/dc
  • Current: 18Amps
  • Gender: Male
  • Contact: Pins
  • Termination: Screw
  • Temperature Range -20 °C/+55°C
  • IP Rating: IP68 when mated
  • Accepts 20-22mm cable dia. as standard & 14-20mm with optional gland pack
  • Mates with EXP-0911,EXP-A911 ranges
  • Accessory: Sealing Cap EXP-0991 & Gland Pack EXP-0980
