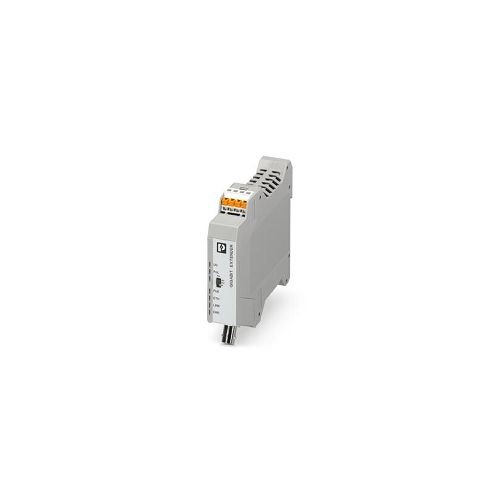

EXTENDER 2010 ETH COAX-G | 1319320

Gigabit Ethernet extender, network extension with coaxial cable up to 1 kilometer and bandwidth up to 1 Gbps, Power over Link function (PoL)
More Information
Complete Electronics Part No. 1319320
Manufacturers Part No. 1319320
Description

EXTENDER 2010 ETH COAX-G

  • Nominal Supply Voltage: 24 V DC / 48 V DC ±5 %
  • Supply Voltage Range: 18 V DC ... 57 V DC
  • Typical power consumption: ≤ 137.5 W (Total, with PoL and PoE)
  • Push-in spring connection
  • Serial Transmission Speed: 10/100/1000 Mbps
  • Serial Connection: RJ45 Jack, Shielded
  • Protocol-transparent for TCP/IP, IPv4, and IPv6
  • G.hn interface speed: ≤ 1000 Mbps
  • Width: 23mm
  • Height: 101mm
  • Depth: 115mm
  • Housing material: PA 6.6-FR
  • Colour: Grey
  • DIN Rail Mounting
  • Ingress protection: IP20
  • Part Number: 1319320
  • Operating Temperature: -40 °C ... 60 °C
  • Made to Order (non-returnable)
