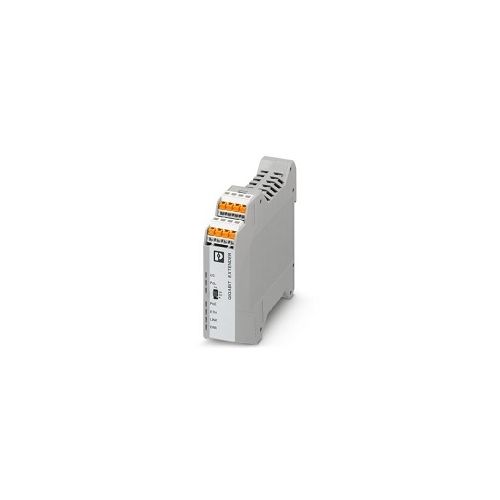

EXTENDER 2010 ETH TP-G | 1319322
Gigabit Ethernet extender, network extension via 2-wire cable up to 1 kilometer and bandwidth up to 1 Gbps, Power over Link function
| Complete Electronics Part No. | 1319322 |
|---|---|
| Manufacturers Part No. | 1319322 |
Description
EXTENDER 2010 ETH TP-G
- Nominal Supply Voltage: 24 V DC / 48 V DC ±5 %
- Supply Voltage Range: 18 V DC ... 57 V DC
- Typical power consumption: ≤ 137.5 W (Total, with PoL and PoE)
- Push-in spring connection
- Serial Transmission Speed: 10/100/1000 Mbps
- Serial Connection: RJ45 Jack, Shielded
- Protocol-transparent for TCP/IP, IPv4, and IPv6
- G.hn interface speed: ≤ 1000 Mbps
- Width: 23mm
- Height: 101mm
- Depth: 115mm
- Housing material: PA 6.6-FR
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 60 °C
- Part Number: 1319322
- Made to Order (non-returnable)
