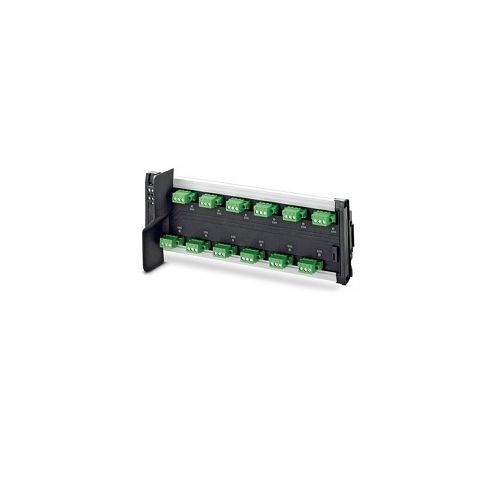

FB-12SP | 2316310 | Device Coupler

Device coupler for Foundation Fieldbus and PROFIBUS PA with terminal connections for 12 spurs connected to fieldbus end devices
More Information
Complete Electronics Part No 2316310
Manufacturers Part No. 2316310
Ethernet Product Type Device Coupler
Description

 Device Coupler - FB-12SP

  • Terminator preinstalled
  • Provides current limiting short-circuit protection per spur
  • Access to high-level language applications via HFI
  • Ex nA [nL, Ex nA [ic] or FISCO ic spur connectionsPower Suppy Connection: Via PCI Bus
  • Connect up to 6 Foundation Fieldbus or PROFIBUS PA field devices
  • Single-sided plug configuration eliminates cable bend radius issues
  • EMC: class A product
  • Supply Voltage Range: 10.5 V DC ... 32 V DC (input on trunk line side)
  • Typical Current Consumption: 4.8 mA
  • Data: Foundation Fieldbus and PROFIBUS
  • 12 x  (EN 61131-2 type 1) Digital Inputs
  • Termination Resistor: 100 Ω, external removable plug included
  • Width: 254.1 mm
  • Height: 112.5 mm
  • Depth: 83.5 mm
  • Ingress Protection: IP20
  • DIN Rail Mounting
  • Weight Per piece (not including packing): 502.4 g
  • Part Number: 2316307
  • Customs tariff number:85369095
