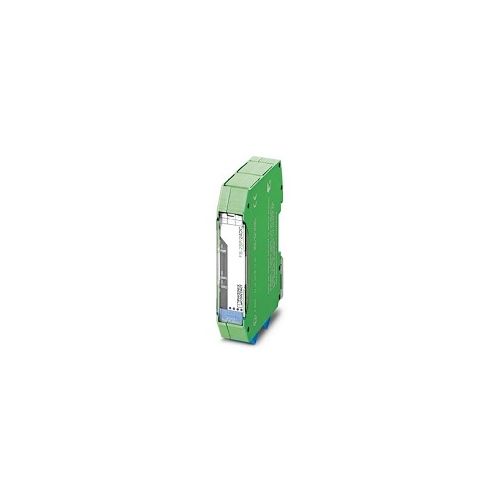

FB-2SP/24DC | 2316352 | Device Coupler
Device coupler for Foundation Fieldbus and PROFIBUS PA with terminal connections for 12 spurs connected to fieldbus end devices ***No longer in product range***
| Complete Electronics Part No. | 2316352 |
|---|---|
| Manufacturers Part No. | 2316352 |
| Ethernet Product Type: | Device Coupler |
Description
Device Coupler - FB-2SP/24DC
***No longer in product range***
- terminal blocks for two spur connections to each device coupler
- provides short-circuit protection to the fieldbus trunk
- Voltage and communication are routed via the TBUS connection system
- ATEX Zone 2 certified
- Supply Voltage Range: 9 V DC ... 30 V DC (input on trunk line side)
- Data: Foundation Fieldbus and PROFIBUS x2
- Connection Method: Pluggable COMBICON screw connection for each spur
- Output Nominal voltage: ≤ 32 V (each spur)
- Max Output Voltage: 35 mA (per channel), 50 mA (per module)
- Colour: Green
- Width: 17.5 mm
- Height: 89.7 mm
- Depth: 70.4 mm
- Ingress Protection: IP20
- Operating temperature: -40 °C ... 85 °C
- DIN Rail Mounting
- Weight Per piece (not including packing): 111.5 g
- Part Number: 2316352
- Customs tariff number:85389099
