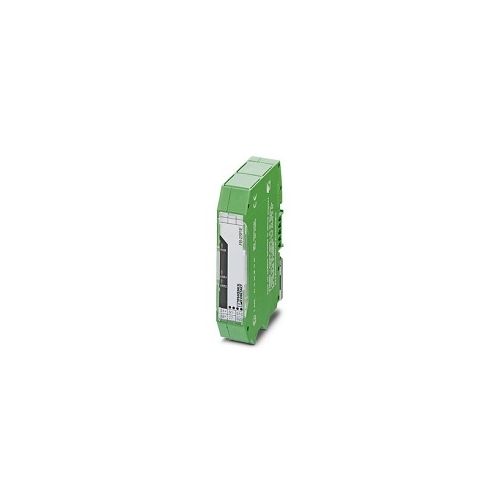

FB-2SP/E | 2316052 | Device Coupler
Device coupler for Foundation Fieldbus and PROFIBUS PA with terminal connections for two spurs connected to fieldbus end devices ***No longer in product range***
| Complete Electronics Part No. | 2316052 |
|---|---|
| Manufacturers Part No. | 2316052 |
| Ethernet Product Type: | Device Coupler |
Description
Device Coupler - FB-2SP/E
***No longer in product range***
- ATEX certified
- Supply Voltage Range: 10.5 V DC ... 32 V DC (via FB-ET/E)
- Max Current Consumption: 3.5 mA (No-load)
- Signal: PROFIBUS, FOUNDATION Fieldbus
- Pluggable COMBICON screw connection for each spur
- Colour: Green
- Housing Material: PA 6.6-FR
- Width: 17.7 mm
- Height: 89.7 mm
- Depth: 70.4 mm
- Ingress Protection: IP20
- Operating temperature: -40°C ... 85°C
- DIN Rail Mounting
- Weight Per piece (not including packing): 109.4 g
- Part Number: 2316052
- Customs tariff number:85389099
- Country of origin: US
