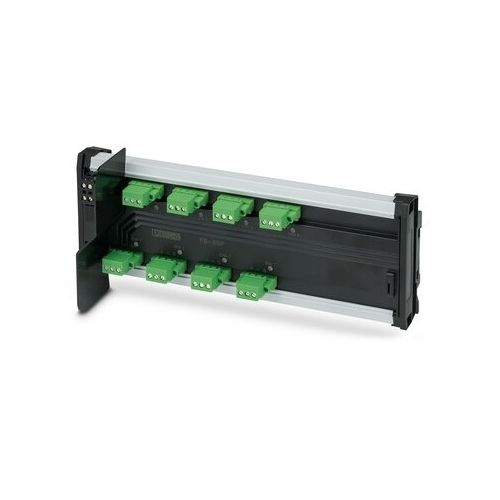

FB-8SP | 1026043 | Device Coupler

Device coupler for Foundation Fieldbus and PROFIBUS PA with terminal connections for eight spurs connected to fieldbus end devices.
More Information
Complete Electronics Part No. 1026043
Manufacturers Part No. 1026043
Ethernet Product Type: Device Coupler
Description

 Device Coupler - FB-8SP

  • ATEX  certified
  • Supply Voltage Range: 10.6 V DC ... 32 V DC
  • Typical Current Consumption: 6.5 mA
  • Data: Foundation Fieldbus and PROFIBUS
  • Termination Resistor:  100 Ω, external removable plug included
  • Width: 254.1 mm
  • Height: 112.5 mm
  • Depth: 83.5 mm
  • Ingress Protection: IP20
  • Operating temperature: -50°C ... 90°C
  • DIN Rail Mounting
  • Weight Per piece (not including packing): 466.3 g
  • Part Number: 1026043
  • Customs tariff number:85369095
  • Country of origin: US
