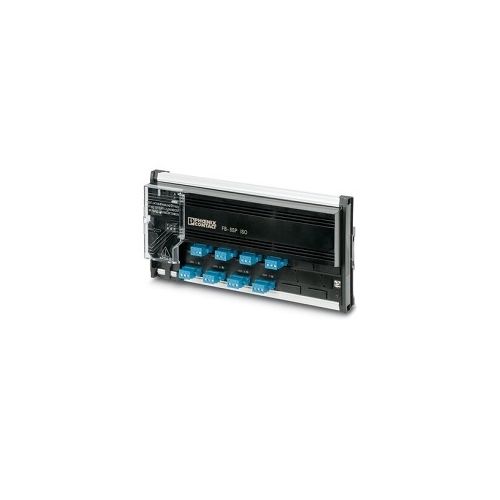

FB-8SP ISO | 2316311 | Device Coupler
Zone 1 installed device coupler for Foundation Fieldbus and PROFIBUS PA with terminal connections for 8 spurs connected to fieldbus end devices.
| Complete Electronics Part No. | 2316311 |
|---|---|
| Manufacturers Part No. | 2316311 |
| Ethernet Product Type: | Device Coupler |
Description
Device Coupler - FB-8SP ISO
- Terminal blocks for two spur connections to each device coupler
- Provides short-circuit protection to the fieldbus trunk
- Single-sided plug configuration eliminates cable bend radius issues
- Connect up to 8 Foundation Fieldbus or PROFIBUS PA field devices located in Zone 0/1
- Terminator preinstalled
- Voltage and communication are routed via the TBUS connection system
- ATEX Zone 1 (ATEX 2014/34/EU)
- EMC: class A product
- Supply Voltage Range: 16 V DC ... 32 V DC (input on trunk line side)
- Max Current Consumption: 35mA (trunk, no load), 350 mA (maximum trunk current)
- Signal: FOUNDATION Fieldbus, PROFIBUS
- Connection Method: Pluggable COMBICON screw connection for each spur
- Number of Channels: 8
- Termination Resistor: Integrated termination, activated with bridge located in correct terminals
- Output Nominal voltage: ≤ 14 V (each spur)
- Output Current: 35 mA (per spur)
- Width: 279 mm
- Height: 142 mm
- Depth: 66 mm
- Ingress Protection: IP20
- Operating temperature: -40°C ... 80°C
- DIN Rail Mounting
- Weight Per piece (not including packing): 1190 g
- Part Number: 2316311
- Customs tariff number:85369095
- Country of Origin: US
