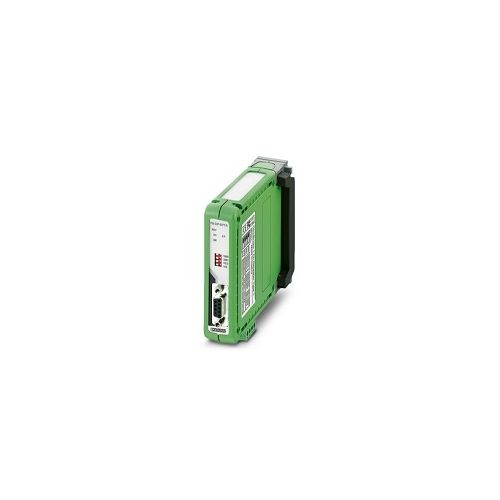

FB-DP-RPTR | 2316373 | Repeater
PROFIBUS DP repeater expansion module for the PROFIBUS DP/PA coupler system,Supported protocols: DP-V0, V1, V2, FDL, MPI, FMS and Profisafe
| Complete Electronics Part No. | 2316373 |
|---|---|
| Manufacturers Part No. | 2316373 |
| Ethernet Product Type: | Repeater |
Description
Repeater - FB-DP-RPTR
- Automatic detection of baud rate up to 12 Mbps
- Integrated switchable terminator
- No bus addressing of device required
- Supply Voltage Range: Supplied via backplane
- Max Current Consumption: 270 mA
- Termination resistor: 390 Ω - 220 Ω - 390 Ω (switchable)
- Colour: Green
- DIN Rail Mounting
- UL 508 Listed
- Ingress Protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Width: 25 mm
- Height: 100 mm
- Depth: 132 mm
- Colour: Green
- Weight Per piece (not including packing):276.5g
- Part Number: 2316373
- Customs tariff number:85176200
- Mounting Position: On horizontal DIN rail
- Country of Origin: NL
