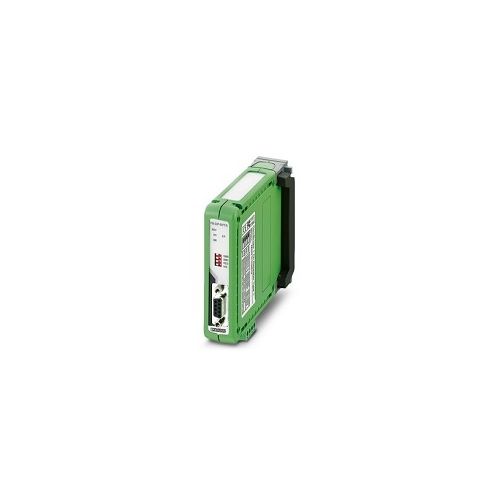

FB-DP-RPTR/SC | 2316374 | Repeater
PROFIBUS DP repeater expansion module for the PROFIBUS DP/PA coupler system, Supported protocols: DP-V0, V1, V2, FDL, MPI, FMS and Profisafe
| Complete Electronics Part No. | 2316374 |
|---|---|
| Manufacturers Part No. | 2316374 |
| Ethernet Product Type: | Repeater |
Description
Repeater - FB-DP-RPTR/SC
- Automatic detection of baud rate up to 12 Mbps
- Integrated switchable terminator
- No bus addressing of device required
- Oscilloscope and bar graph functionality
- Supply Voltage Range: Supplied via backplane
- Max Current Consumption: 555 mA
- Colour: Green
- DIN Rail Mounting
- UL 508 Listed
- Ingress Protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Width: 25 mm
- Height: 100 mm
- Depth: 132 mmColour: Green
- Weight Per piece (not including packing):281g
- Part Number: 2316374
- Customs tariff number:85176200
- Mounting Position: On horizontal DIN rail NS 35 in acc. with EN 60715
- Country of Origin: NL
