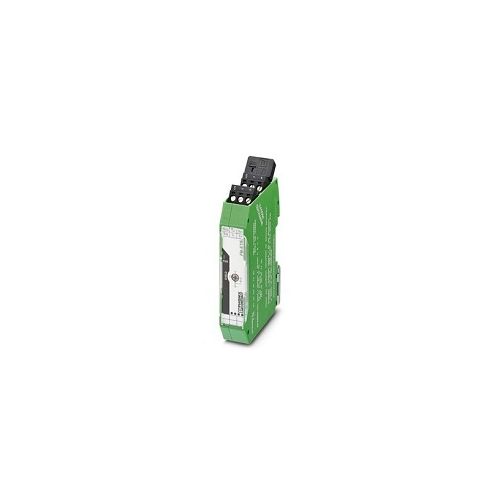

FB-ET/E | 2316050 | Device Coupler
The FB-ET/E connects the trunk of a fieldbus segment to modular device couplers using the tbus connector system ***No longer in product range***
| Complete Electronics Part No. | 2316050 |
|---|---|
| Manufacturers Part No. | 2316050 |
| Ethernet Product Type: | Trunk Module |
Description
Trunk module - FB-ET/E
***No longer in product range***
- ATEX certified
- With terminator
- Supply Voltage Range: 10.5 V DC ... 32 V DC (via FB-ET/E)
- Max Current Consumption: 2 mA ((with terminator)
- Signal: PROFIBUS, FOUNDATION Fieldbus
- Pluggable COMBICON screw connection for each spur
- Colour: Green
- Width: 17.5 mm
- Height: 99.1 mm
- Depth: 70.4 mm
- Ingress Protection: IP20
- Operating temperature: -40°C ... 85°C
- DIN Rail Mounting
- Weight Per piece (not including packing): 62.6 g
- Part Number: 2316050
- Customs tariff number:85389099
- Country of origin: US
