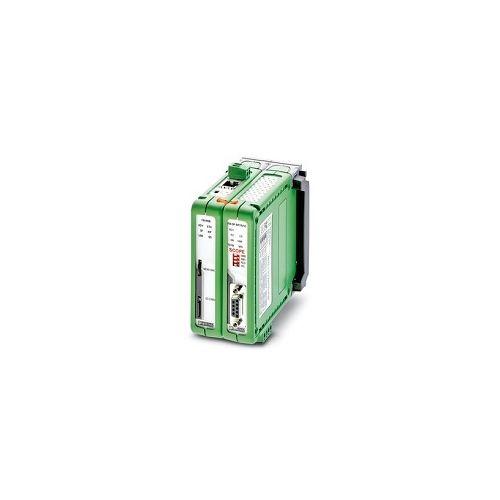

FB-HSB-DP-SC | 2316382 | Repeater
PROFIBUS head station (FB-HSB) with a PROFIBUS DP repeater (FB-DP-RPTR/SC) provides network diagnostics and an oscilloscope feature.
| Complete Electronics Part No. | 2316382 |
|---|---|
| Manufacturers Part No. | 2316382 |
| Ethernet Product Type: | Repeater |
Description
Repeater - FB-HSB-DP-SC
- Embedded web server for configuration and access to network diagnostics
- Manage and configure PROFIBUS field devices using FDT/DTM
- One communication interface module can drive up to ten individual PROFIBUS DP or PROFIBUS PA modules
- Auto detect any baud rate up to 12 Mbps transparently
- One-network head station unit (FB-HSB),
- PROFIBUS DP repeater with oscilloscope (FB-DP-RPTR/SC)
- Supply Voltage Range: 10.8....26.4 V DC
- Max Current Consumption: 800mA
- Connection Method: RJ45 x 1
- Colour: Green
- DIN Rail Mounting
- UL 508 Listed
- Ingress Protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight Per piece (not including packing):22.22g
- Part Number: 2316382
- Customs tariff number:85176200
- Country of Origin: US
