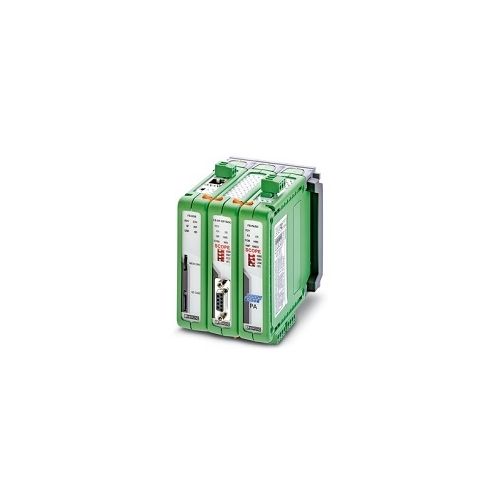

FB-HSB-DP-SC/PA | 2316381 | Converter
PROFIBUS DP to PROFIBUS PA coupler system for integration and diagnostics of PROFIBUS PA in PROFIBUS DP
| Complete Electronics Part No. | 2316381 |
|---|---|
| Manufacturers Part No. | 2316381 |
| Ethernet Product Type: | Converter |
Description
Converter - FB-HSB-DP-SC/PA
- PROFIBUS DP to PROFIBUS PA coupler system
- Embedded web server for configuration and access to network diagnostics
- Manage and configure PROFIBUS field devices using FDT/DTM
- One communication interface module can drive up to ten individual PROFIBUS DP or PROFIBUS PA modules
- Auto detect any baud rate up to 12 Mbps transparently
- One-network head station unit (FB-HSB),
- PROFIBUS DP repeater with oscilloscope (FB-DP-RPTR/SC)
- PROFIBUS PA interface module with oscilloscope
- Supply Voltage Range: 10.8....26.4 V DC
- Max Current Consumption: 800mA
- Connection Method: RJ45 x 1
- Width: 75 mm
- Height: 100 mm
- Depth: 132 mm
- Colour: Green
- DIN Rail Mounting
- UL 508 Listed
- Ingress Protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight Per piece (not including packing):887 g
- Part Number: 2316381
- Customs tariff number:85176200
- Country of Origin: NL
