FB-HSP-PLUG/24DC/6A | 2316383 | Power module
PROFIBUS power module, Adds additional power to the PROFIBUS backplane, Backplane power redundancy
| Complete Electronics Part No. | 2316383 |
|---|---|
| Manufacturers Part No. | 2316383 |
| Ethernet Product Type: | Power Supply |
Description

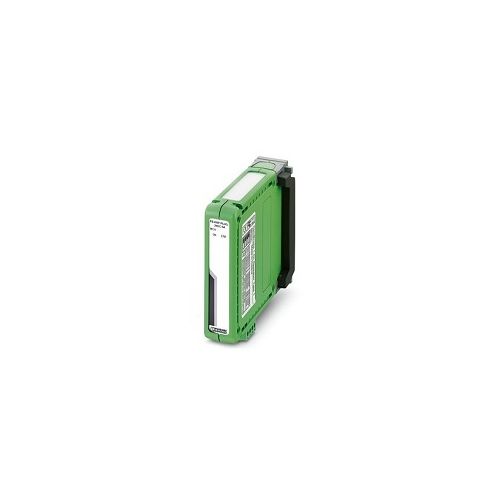

Power module - FB-HSP-PLUG/24DC/6A
- Adds additional power to the PROFIBUS backplane
- For when the headstation is no longer capable of supporting all of the DP or PA modules
- Can be used to create power redundancy on the backplane.
- Width: 25 mm
- Height: 110 mm
- Depth: 140 mm
- DIN Rail Mounting
- UL 508 Listed
- Ingress Protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight Per piece (not including packing):260.3 g
- Part Number: 2316383
- Customs tariff number:85366990
- Country of Origin: NL
