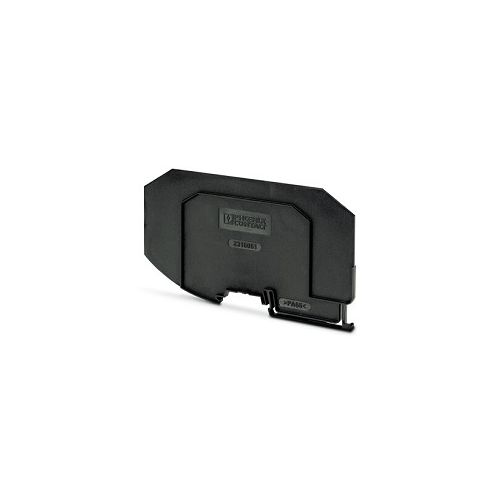

FB-MODULAR-PP | 2316061 | Partition plate
The FB-MODULAR-PP is a partition plate used between two fieldbus modular device couplers and provides the required 50 mm spacing ***No longer in product range***
| Complete Electronics Part No. | 2316061 |
|---|---|
| Manufacturers Part No. | 2316061 |
| Ethernet Product Type: | Cover Plate |
Description
Partition plate - FB-MODULAR-PP
***No longer in product range***
- The device couplers are 17.5 mm wide, but when adding a partition plate a 22.5 mm TBUS connector is required.
- The partition plate provides the required 50 mm spacing when using Zone 2 installed device couplers
- Width: 5 mm
- Height: 79 mm
- Depth: 137 mm
- Material: PA 6.6
- Operating Temperature: -40 °C ... 70 °C
- Mounting: DIN rail: 35 mm
- Weight per Piece (excluding packing): 20.9 g
- Part Number: 2316061
- Customs tariff number: 85472000
- Country of origin: US
