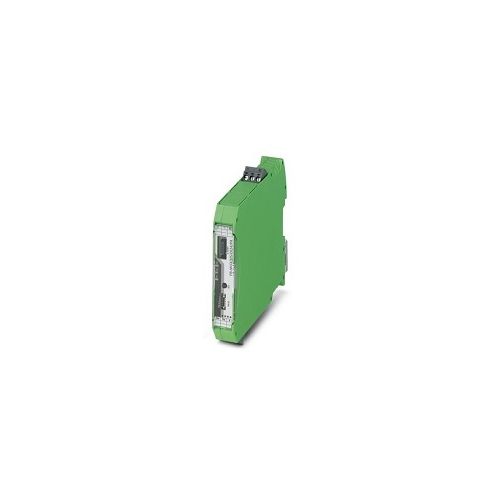

FB-MUX/HS/DI24/PA | 1005332 | Multiplexer
The fieldbus PA multiplexer headstation allows the integration of standard Radioline I/O modules to a Profibus PA network ***No longer in product range***
| Complete Electronics Part No. | 1005332 |
|---|---|
| Manufacturers Part No. | 1005332 |
| Ethernet Product Type: | Multiplexer |
Description
Multiplexer - FB-MUX/HS/DI24/PA
***No longer in product range***
- Allows the integration of standard Radioline I/O modules to a Profibus PA network
- The FB-MUX/HS/DI24/PA head station can be used with up to six 4-channel digital input modules (RAD-DI4-IFS), six 4-channel NAMUR digital input modules (RAD-NAM4-IFS), three 8-channel digital input modules (RAD-DI8-IFS), or any combination of modules for maximum of 24 total channels.
- This configuration can be used as a high-density digital input solution
- Has five profile software versions for different IO configurations.
- Width: 17.5 mm
- Height: 114.5 mm
- Depth: 99mm
- Colour: Green
- Housing Material: PA 6.6-FR
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C
- Weight per Piece (excluding packing): 187.9 g
- Part Number 1005332
- Customs tariff number: 85176200
- Country of origin: US
