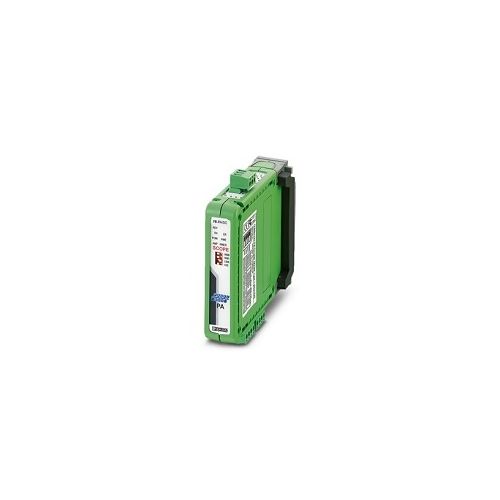

FB-PA/SC | 2316375 | Repeater
PROFIBUS PA interface module with oscilloscope, Ring wave noise immunity in acc. with IEC 61000-4-12, UL 508 Listed
| Complete Electronics Part No. | 2316382 |
|---|---|
| Manufacturers Part No. | 2316382 |
| Ethernet Product Type: | Repeater |
Description
Repeater - FB-PA/SC
- Supply Voltage Range: Supplied via backplane
- Max Current Consumption: 12mA
- Colour: Green
- DIN Rail Mounting
- UL 508 Listed
- Ingress Protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Width: 25 mm
- Height: 100 mm
- Depth: 132 mmColour: Green
- Weight Per piece (not including packing):281g
- Part Number: 2316375
- Customs tariff number:85176200
- Mounting Position: On horizontal DIN rail NS 35 in acc. with EN 60715
- Country of Origin: NL
