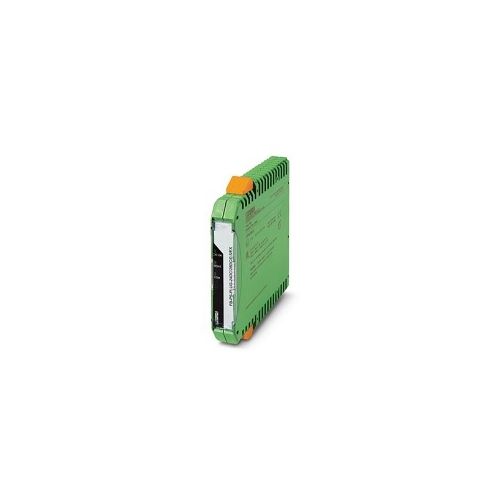

FB-PS-PLUG-24DC/28DC/0.5/EX | 2316132 | Power module
Power supply plug for fieldbus system in hazardous locations. Provides 500 mA @ 28 V DC to couplers along the trunk ***No longer in product range***
| Complete Electronics Part No. | 2316132 |
|---|---|
| Manufacturers Part No. | 2316132 |
| Ethernet Product Type: | Power Supply |
Description
Power module - FB-PS-PLUG-24DC/28DC/0.5/EX
***No longer in product range***
- Input voltage: 24 V dc
- Nominal input voltage range: 18.5 V DC ... 30.5 V DC
- Output voltage range: 28 V DC ... 30 V DC (on the trunk)
- Nominal output current: 500 mA
- plug in connection
- Width: 17.5 mm
- Height: 117.6 mm
- Depth: 115 mm
- DIN Rail Mounting
- ATEX Approved
- Ingress Protection: IP20
- Operating Temperature: -40 °C ... 70 °C
- Weight Per piece (not including packing):218 g
- Part Number: 2316132
- Customs tariff number:85044082
- Country of Origin: US
