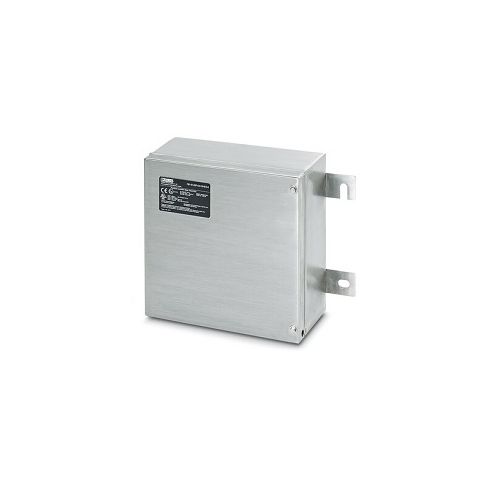

FB1-S1-6SP-S-0-10-00-0-0 | 2316446 | Junction Box
Stainless steel field junction box with ten ports for use in hazardous locations. Includes six-spur block device coupler (FB-6SP)
| Complete Electronics Part No. | 2316446 |
|---|---|
| Manufacturers Part No. | 2316446 |
| Ethernet Product Type: | Junction Box |
Description
Junction box - FB1-S1-6SP-S-0-10-00-0-0
- For Foundation Fieldbus or PROFIBUS PA
- Terminator preinstalled
- Provides current limiting short-circuit protection per spur
- Connect up to 6 Foundation Fieldbus or PROFIBUS PA field devices
- Single-sided plug configuration eliminates cable bend radius issues
- Typical Current Consumption: 4.8 mA (no Load), 340mA (Trunk)
- Trunk cable (+, -, S) is connected to a Plugtrab surge base (PT 4+F-BE)
- Width: 254 mm
- Height: 254 mm
- Depth: 127 mm
- Colour: Grey
- Housing Material: Stainless Steel
- Wall Mounting
- ATEX Approved
- Ingress Protection: IP66
- Operating Temperature: -40 °C ... 70 °C
- Weight Per piece (not including packing): 4660 g
- Part Number: 2316446
- Customs tariff number:85371098
- Country of Origin: US
