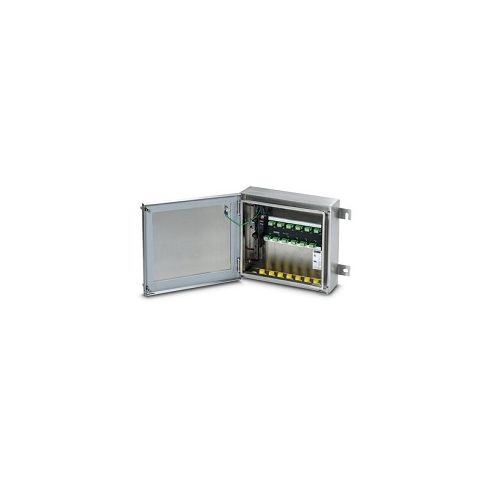

FB2-S1-12SP-S-0-16-00-0-0 | 2316433 | Junction Box
Stainless steel field junction box with sixteen ports for use in hazardous locations. Includes 12-spur block device coupler (FB-12SP)
| Complete Electronics Part No. | 2316433 |
|---|---|
| Manufacturers Part No. | 2316433 |
| Ethernet Product Type: | Junction Box |
Description
Junction box - FB2-S1-12SP-S-0-16-00-0-0
- For Foundation Fieldbus or PROFIBUS PA
- Terminator preinstalled
- Provides current limiting short-circuit protection per spur
- Connect up to 12 Foundation Fieldbus or PROFIBUS PA field devices
- Single-sided plug configuration eliminates cable bend radius issues
- Typical Current Consumption: 6.5 mA (no Load), 680mA (Trunk)
- Trunk cable (+, -, S) is connected to a Plugtrab surge base (PT 4+F-BE)
- Width: 355.6 mm
- Height: 304.8 mm
- Depth: 127 mm
- Colour: Grey
- Housing Material: Stainless Steel, 316L, electropolished
- Wall Mounting
- ATEX Approved
- Ingress Protection: IP66
- Operating Temperature: -40 °C ... 70 °C
- Weight Per piece (not including packing): 6600 g
- Part Number: 2316433
- Customs tariff number:85371098
- Country of Origin: US
