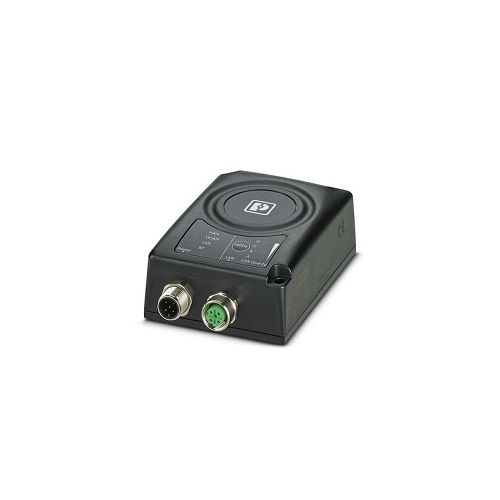

FL EPA 2 | 1005955 | Wireless module
Combined Ethernet wireless module with Bluetooth and Wi-Fi, internal antenna, IP65, 9 ... 30 V DC, M12 connection
| Complete Electronics Part No. | 1005955 |
|---|---|
| Manufacturers Part No. | 1005955 |
| Ethernet Product Type: | Wireless Module |
Description
Wireless module - FL EPA 2
- Access point/client adapter for WLAN and Bluetooth
- Supply Voltage: 24 V DC
- Supply Voltage range: 9 V DC ... 30 V DC
- Supply Current: typ. 54mA (at 24 V DC)
- 1 x Digital Input
- Power supply connector: M12 connector (A-coded, male)
- Ethernet Connector: M12 connector (D-coded, female)
- 10/100 Mbps
- Auto negotiation and autocrossing
- Wireless: Bluetooth 2.1 + EDR
- Frequency Range: 2.402 GHz ... 2.48 GHz
- Web interface, MODE button, AT commands (TCP/IP), SSC
- Width: 67.8mm
- Height: 92.7mm
- Depth: 33.2mm
- Wall Mounting
- Integrated antenna
- Ingress protection: IP65
- Operating Temperature: -40°C ... 65°C
- Weight per Piece (excluding packing): 166 g
- Part Number 1005955
- Customs tariff number: 85176200
- Country of origin: SE
