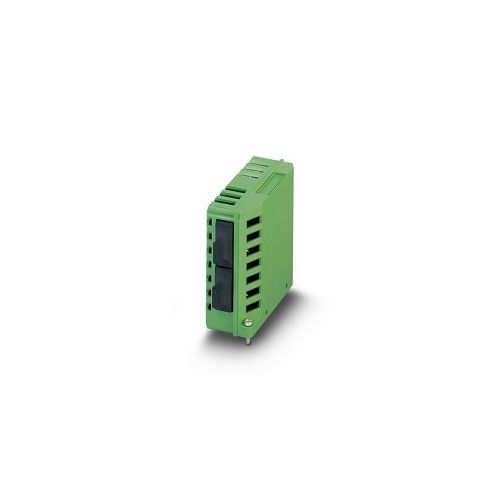

FL IF 2FX SM SC-D | 2832205 | Media Module
Fiber optic interface module for connecting 100 Base-FX multi-mode glass fibers (1300 nm), SC, connection direction forward
| Complete Electronics Part No. | 2832205 |
|---|---|
| Manufacturers Part No. | 2832205 |
Description
Fibre Optic Interface Module
SC, connection direction downward
- Fiber optic interface module for connecting 100 Base-FX multi-mode glass fibers (1300 nm)
- Supply Voltage via head station
- Power Supply Connection: From FL SWITCH GHS or FXT
- Connection Method: SC (Direction Downward)
- Transmission Speed: 100 Mbps
- Transmission Length: 36000 m (fiberglass with F-G 9/125 0.36 dB/km)
- Transmission Length 2: 32000 m (fiberglass with F-G 9/125 0.4 dB/km)
- Transmission Length 3: 26000 m (fiberglass with F-G 9/125 0.5 dB/km)
- Wavelength: 1300 nm
- EMC: class A product
- No of Channels: 2
- Typical current consumption: 200 mA
- Degree of protection: IP20
- Operating Temperature: 0 °C ... 55 °C (non-condensing)
- Flammability rating according to UL 94: V0
- Width: 31mm
- Height: 85mm
- Depth: 72.5mm
- Colour: Green
- Weight per Piece (excluding packing): 80 g
- Part Number 2832205
- Customs tariff number: 85176200
- Country of origin: DE
