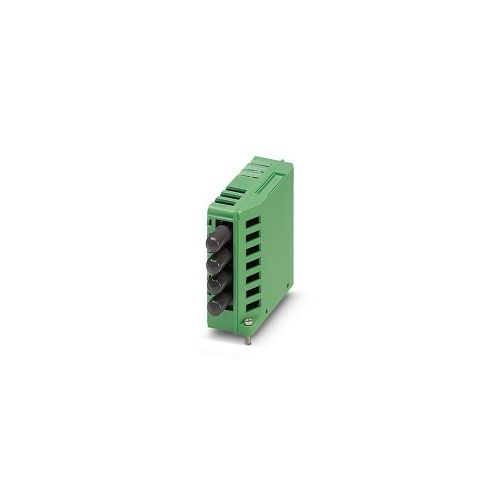

FL IF 2FX ST-D | 2884033 | Media Module
Fiber optic interface module for connecting 100 Base-FX multi-mode glass fibers (1300 nm), ST, connection direction downward
| Complete Electronics Part No. | 2884033 |
|---|---|
| Manufacturers Part No. | 2884033 |
Description
Fibre Optic Interface Module
ST, connection direction downward
Fiber optic interface module for connecting 100 Base-FX multi-mode glass fibers (1300 nm)
Supply Voltage via head station
Power Supply Connection: From FL SWITCH GHS or FXT
Connection Method: ST (Direction Downward)
Transmission Speed: 100 Mbps
Transmission Length: 10000 m (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
Transmission Length 2: 6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200)
Transmission Length 3: 3000 m (fiberglass with F-G 62.5/125 2.6 dB/km F600)
Transmission Length 4: 2800 m (fiberglass with F-G 50/125 1.6 dB/km F800)
Wavelength: 1300 nm
EMC: class A product
No of Channels: 2 (ST multi-mode)
Typical current consumption: 200 mA
Degree of protection: IP20
Operating Temperature: 0 °C ... 55 °C (non-condensing)
Width: 31mm
Height: 83mm
Depth: 72.5mm
Colour: Green
Weight per Piece (excluding packing): 80 g
Part Number 2884033
Customs tariff number: 85176200
Country of origin: DE
