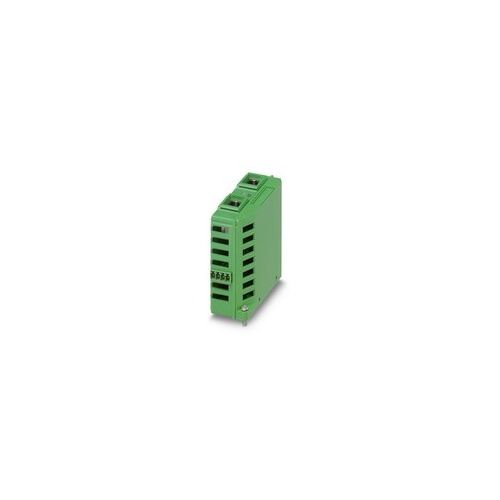

FL IF 2PSE-F | 2832904 | Media Module
Interface module for connecting PoE twisted pair ports, RJ45, connection direction forward
| Complete Electronics Part No. | 2832904 |
|---|---|
| Manufacturers Part No. | 2832904 |
Description
Interface Module
For connecting PoE twisted pair ports, RJ45
- Fiber optic interface module for connecting 100 Base-FX multi-mode glass fibers (1300 nm)
- Supply Voltage: 48 V DC (Internal / 48 V DC for PoE)
- Supply Voltage Range: 45.5 V DC ... 53 V DC
- Power Supply Connection: From FL SWITCH GHS or FXT
- Connection Method: RJ45 (Direction Forward)
- Transmission Speed: 10/100 Mbps (connection direction forwards)EMC: class A product
- Transmission Length: 100 m (per Segment)
- No of Channels: 2 (PoE ports)
- Typical current consumption: 10 mA
- Degree of protection: IP20
- Operating Temperature: -20°C ... 55°C (non-condensing)
- Width: 31mm
- Height: 84.7mm
- Depth: 75.5mm
- Colour: Green
- Weight per Piece (excluding packing): 70 g
- Part Number 2832904
- Customs tariff number: 85176200
- Country of origin: DE
