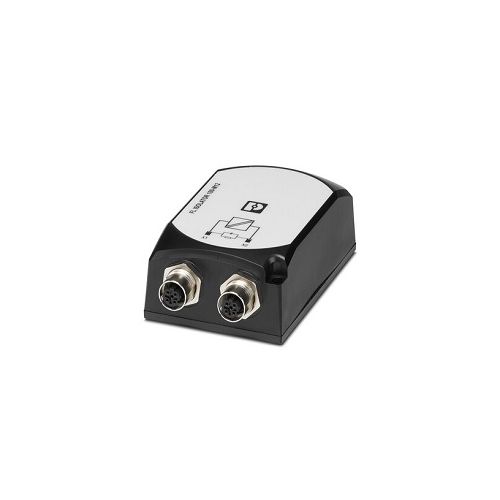

FL ISOLATOR 100-M12 | 2902985 | Network Isolator
Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential differences of up to 4 kV.
| Complete Electronics Part No. | 2313931 |
|---|---|
| Manufacturers Part No. | 2313931 |
| Ethernet Product Type: | Network Isolator |
Description
Network Isolator - FL ISOLATOR 100-RJ/RJ
- Ethernet / PROFINET Network Isolator
- Specifically developed for use in the railway industry
- Featuring M12 connection technology
- Optional wall mounting
- Connection: 2 x M12 connectors (D-Coded, Female)
- Serial transmission speed: 10/100 Mbps
- Supply Voltage: passive module, no supply voltage required
- Width: 66 mm
- Height: 91 mm
- Depth: 34 mm
- Colour: Black
- Material: Polycarbonate PC (Upper part), PC/ABS (Lower part)
- Ingress Protection: IP54
- Conformance with EMC Directive 2014/30/EU
- Operating Temperature: -40°C ... 75°C
- Weight per Piece (excluding packing): 149.6 g
- Part Number 2902985
- Customs tariff number:85045000
- Country of origin: DE
