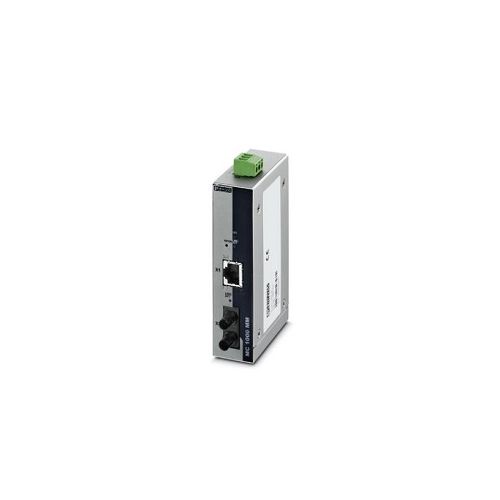

FL MC 1000 ST | 2891321 | FO Converter
FO converter with ST fiber optic connection (1300 nm), for converting 100Base-TX to multi-mode fiberglass
More Information
Complete Electronics Part No.
2891321
Manufacturers Part No.
2891321
Phoenix Ethernet Series:
FO Converters TX - FO
Total 10/100 (RJ45) Ports
1
Total Ethernet Ports
2
FX (Optical) Connector Type:
ST
FX (Optical) Cable Type:
Multi Mode (MM)
IP Rating:
IP20
Description
FO converter with ST FO connection (1300 nm)
For converting 10/100Base-T(X) to multi mode fiberglass (50/125 µm)
Auto MDI/MDI-X switch-over
Link Fault Pass Through
Transmission speed: 10/100 Mbps (RJ45 shielded)
Comprehensive link diagnostics.
Data transfer rates of 100 Mbps
DIN-rail mountable
Supply Voltage: 12...48 V DC
Nominal supply voltage: 24 V DC
Power Connection method: Plug-in screw connection via COMBICON
Multi-mode fiberglass / GI-HCS
Fibre Connector: ST
Signal LED's: Activity, link status, 10/100 Mbps
Typical current consumption: 100 mA (at 24 V DC)
Width: 28mm
Height: 110mm
Depth: 70mm
Ingress protection: IP20
Operating Temperature: 0 °C ... 60°C
Weight per Piece (excluding packing): 278 g
Part Number 2891321
Customs tariff number: 85176200
Country of origin: TW
