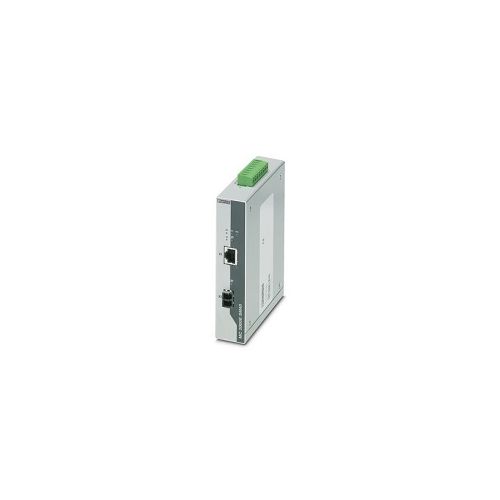

FL MC 2000E SM40 LC | 2891156 | FO Converter
FO converter with LC duplex fiber optic connection (1300 nm), for converting 100Base-TX to single mode fiberglass. Auto MDI(X) function. Comprehensive link diagnostics
| Complete Electronics Part No. | 2891156 |
|---|---|
| Manufacturers Part No. | 2891156 |
| Phoenix Ethernet Series: | FO Converters TX - FO |
| Total 10/100 (RJ45) Ports | 1 |
| Total Ethernet Ports | 2 |
| FX (Optical) Connector Type: | LC |
| FX (Optical) Cable Type: | Single Mode (SM) |
| IP Rating: | IP20 |
Description
FO converter with LC FO connection (1310 nm)
- For converting 100Base-T(X) to single mode fiberglass
- Auto MDI/MDI-X switch-over
- Link Fault Pass Through
- Relay Output
- Transmission speed: 100 Mbps (RJ45 shielded)
- Comprehensive link diagnostics.
- Data transfer rates of 100 Mbps
- DIN-rail mountable
- Supply Voltage: 12...57 V DC
- Nominal supply voltage: 24/48 V DC
- Power Connection method: Plug-in screw terminal connection via COMBICON, redundancy possible
- Single-mode fiberglass
- Fibre Connector: LC duplex
- Signal LED's: LNK/ACT, 100
- Typical current consumption: 110 mA (at 24 V DC)
- Width: 30mm
- Height: 130mm
- Depth: 100mm
- Housing Material: Aluminium
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 75°C
- Weight per Piece (excluding packing): 488.4 g
- Part Number 2891156
- Customs tariff number: 85176200
- Country of origin: TW
