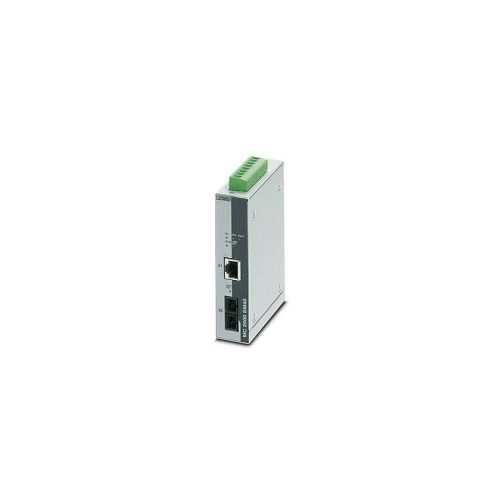

FL MC 2000T SM20 SC | 2891317 | FO Converter
Fibre Optic converter with SC fiber optic connection (1300 nm), for converting 100Base-TX to single-mode fiberglass, Auto MDI(X) Function
More Information
Complete Electronics Part No.
2891317
Manufacturers Part No.
2891317
Phoenix Ethernet Series:
FO Converters TX - FO
Total 10/100 (RJ45) Ports
1
Total Ethernet Ports
2
FX (Optical) Connector Type:
SC Duplex
FX (Optical) Cable Type:
Single Mode (SM)
IP Rating:
IP20
Description
FO converter with SC FO connection (1300 nm)
For converting 10/100Base-T(X) to single mode fiberglass
Auto MDI/MDI-X switch-over
Link Fault Pass Through
Relay Output x1
Transmission speed: 10/100 Mbps (RJ45 shielded)
Comprehensive link diagnostics.
Data transfer rates of 100 Mbps
DIN-rail mountable
Supply Voltage: 12...48 V DC
Nominal supply voltage: 24 V DC
Power Connection method: Plug-in screw terminal connection via COMBICON
Single-mode fiberglass
Fibre Connector: SC duplex
Signal LED's: LNK/ACT, 100
Typical current consumption: 110 mA (at 24 V DC)
Width: 28mm
Height: 110mm
Depth: 70mm
Housing Material: Aluminium
Ingress protection: IP20
Operating Temperature: 0 °C ... 60°C
Weight per Piece (excluding packing): 302.3 g
Part Number 2891317
Customs tariff number: 85176200
Country of origin: TW
