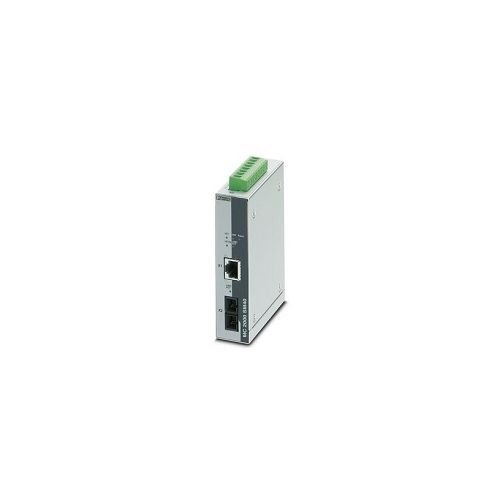

FL MC 2000T SM40 SC | 2891318 | FO Converter
Fibre Optic converter with SC fiber optic connection (1300 nm), for converting 100Base-TX to single-mode fiberglass, Auto MDI(X) Function
| Complete Electronics Part No. | 2891318 |
|---|---|
| Manufacturers Part No. | 2891318 |
| Phoenix Ethernet Series: | FO Converters TX - FO |
| Total 10/100 (RJ45) Ports | 1 |
| Total Ethernet Ports | 2 |
| FX (Optical) Connector Type: | SC Duplex |
| FX (Optical) Cable Type: | Single Mode (SM) |
| IP Rating: | IP20 |
Description
FO converter with SC FO connection (1300 nm)
- For converting 10/100Base-T(X) to Single mode fiberglass
- Auto MDI/MDI-X switch-over
- Link Fault Pass Through
- Alarm Output
- Transmission speed: 10/100 Mbps (RJ45 shielded)
- Comprehensive link diagnostics.
- Data transfer rates of 100 Mbps
- DIN-rail mountable
- Supply Voltage: 12...48 V DC
- Nominal supply voltage: 24 V DC
- Power Connection method: Plug-in screw terminal connection via COMBICON
- Single-mode fiberglass
- Fibre Connector: SC
- Signal LED's: Activity, link status, 10/100 Mbps
- Typical current consumption: 100 mA (at 24 V DC)
- Width: 28mm
- Height: 110mm
- Depth: 70mm
- Housing Material: Aluminium
- Ingress protection: IP20
- Operating Temperature: 0 °C ... 60°C
- Weight per Piece (excluding packing): 299.8 g
- Part Number 2891318
- Customs tariff number: 85176200
- Country of origin: TW
