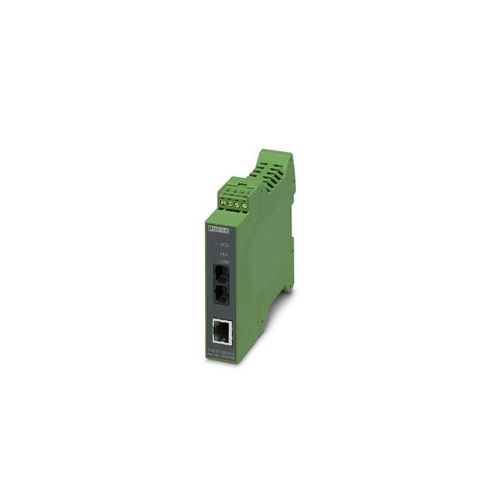

FL MC EF 1300 SM SC | 2902856 | FO Converter
FO converter with SC duplex fiber optic connection (1300 nm), for converting 10/100Base-T(X) to single mode fiberglass (9/125 µm)
More Information
Complete Electronics Part No
2902856
Manufacturers Part No.
2902856
Phoenix Ethernet Series
FO Converters TX - FO
Total 10/100 (RJ45) Ports
1
Total Ethernet Ports
2
FX (Optical) Port Connector Type
SC Duplex
FX (Optical) Cable Type
Single Mode (SM)
IP Rating
IP20
Description
FO converter with SC duplex FO connection (1300 nm)
For converting 10/100Base-T(X) to single mode fiberglass (9/125 µm)
Auto negotiation
Auto MDI(X) function
Comprehensive link diagnostics
Store and forward media converter
Transmission speed: 10/100 Mbps
DIN-rail mountable
Supply Voltage: 18...30 V DC
Connection method: Plug-in screw terminal block (COMBICON), redundancy possible
Single-mode fiberglass
Transmission length incl. 3 dB system reserve: 36 km (With F-E 9/125 0.36 dB/km), 32 km (With F-E 9/125 0.4 dB/km), 26 km (With F-E 9/125 0.5 dB/km)
Fibre Types: 50/125 µm, 62.5/125 µm, Fiberglass
Transmission ranges up to 36 km
Fibre Connector: SC
Signal LED's: Activity, link status, 10/100 Mbps
Typical current consumption: 100 mA (at 24 V DC)
Reverse polarity protection
Width: 22.5mm
Height: 99mm
Depth: 114.5mm
Housing material: PA 6.6-FR
Colour: Green
Ingress protection: IP20
Operating Temperature: -40 °C ... 65 °C
Weight per Piece (excluding packing): 174.4 g
Part Number 2902856
Customs tariff number: 85176200
Country of origin: DE
