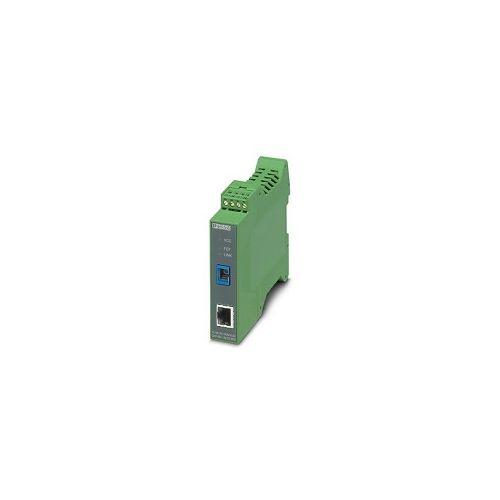

FL MC EF WDM-B SC | 2902659 | FO Converter
FO converter (replacement device B), for full duplex transmission from 10/100Base-T(X) to individual simplex fiberglass with WDM
| Complete Electronics Part No. | 2902659 |
|---|---|
| Manufacturers Part No. | 2902659 |
| Phoenix Ethernet Series: | FO Converters TX - FO |
| Total 10/100 (RJ45) Ports: | 1 |
| Total Ethernet Ports: | 2 |
| FX (Optical) Connector Type: | SC Simplex |
| FX (Optical) Cable Type: | Multimode or Single Mode |
| IP Rating: | IP20 |
Description
FO converter with SC FO connection
- For converting 10/100Base-T(X) to multi / single mode fiberglass
- Replacement device B
- Wavelength Division Multiplex (WDM)
- SC simplex fiber optic connection (1550/1310 nm)
- Device set (type A and type B) required for operation.
- Auto MDI/MDI-X switch-over
- Link Fault Pass Through
- Store-and-forward media converter
- Transmission speed: 10/100 Mbps (RJ45 shielded)
- Comprehensive link diagnostics.
- Data transfer rates of 100 Mbps
- DIN-rail mountable
- Supply Voltage: 18...30 V DC
- Nominal supply voltage: 24 V DC
- Power Connection method: Plug-in screw connection via COMBICON
- Fibre Connector: SC
- Signal LED's: Activity, link status, 10/100 Mbps
- Typical current consumption: 110 mA (at 24 V DC)
- Width: 22.5mm
- Height: 99mm
- Depth: 114.5mm
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 65°C
- Weight per Piece (excluding packing): 120 g
- Part Number 2902659
- Customs tariff number: 85176200
- Country of origin: DE
