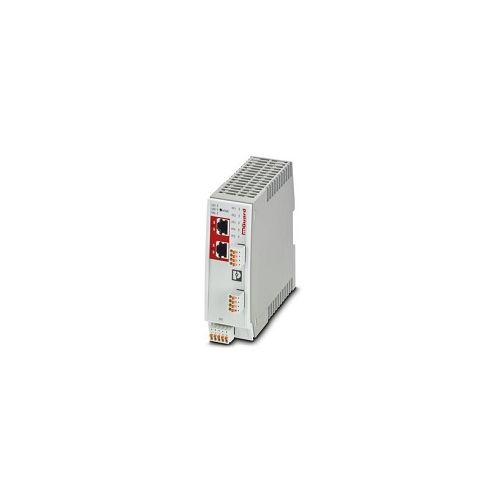

FL MGUARD 1102 | 1153079 | Router Firewall
Industrial NAT firewall, comprehensive NAT functionality, intelligent stateful inspection firewall, protection without configuration in Easy Protect Mode
| Complete Electronics Part No. | 1153079 |
|---|---|
| Manufacturers Part No. | 1153079 |
| Ethernet Product Type: | Firewall / Router |
| Total 10/100/1000 (RJ45) Ports: | 2 |
| IP Rating: | IP20 |
Description
FL MGUARD... Router / Firewall
Industrial NAT firewall
- 2 x 10/100/1000 Mbps RJ45
- High Data Throughput
- Inexpensive entry into network security
- Supply Voltage: 24 V DC
- Supply Voltage range: 18 V DC....32 V DC
- Signal LED's: Supply voltage, data transmission, error, link, activity
- Power supply connection: Via COMBICON, max. conductor cross section 1.5 mm²
- Typical current consumption: 120 mA (at US = 24 V DC)
- Signal contact control voltage: 24 V DC (typical)
- Operating Temperature: 0 °C ... 60 °C
- Width: 45mm
- Height: 130mm
- Depth: 130mm
- Mounting Type: DIN Rail
- Housing material: Polycarbonate fiber reinforced
- Colour: Grey
- Weight per Piece (excluding packing): 330 g
- Part Number 1153079
- Customs tariff number: 85176200
- Country of origin: DE
