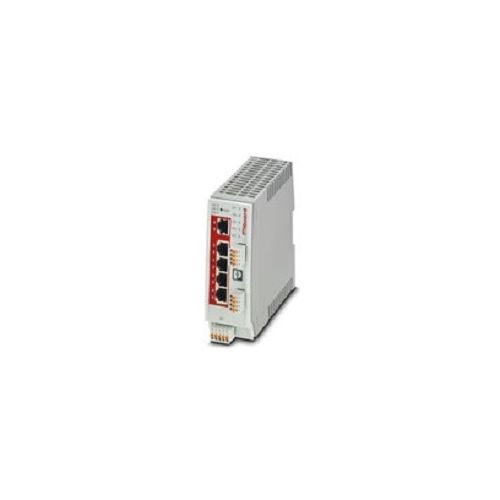

FL MGUARD 1105 | 1153078 | Router / Firewall
Industrial NAT firewall, Unmanaged Switch, comprehensive NAT functionality, intelligent stateful inspection firewall,
| Complete Electronics Part No. | 1153078 |
|---|---|
| Manufacturers Part No. | 1153078 |
| Ethernet Product Type: | Firewall / Router |
| Total 10/100 (RJ45) Ports: | 5 |
| IP Rating: | IP20 |
Description
FL MGUARD...Industrial NAT firewall, Unmanaged Switch
- 5 x 10/100/1000 Mbps Ethernet ports (RJ45)
- Central management tool
- Signal Contact Connection: Push-in-/Spring-cage connection
- Supply Voltage: 24 V DC
- Supply Voltage range: 18 V DC....32 V DC
- Signal LED's: Supply voltage, data transmission, error, link, activity
- Power supply connection: Via COMBICON, max. conductor cross section 1.5 mm²
- Typical current consumption: 180 mA (at 24 V DC)
- Signal contact control voltage: 24 V DC (typical)
- Operating Temperature: 0 °C ... 60 °C
- Width: 45mm
- Height: 130mm
- Depth: 130mm
- Mounting Type: DIN Rail
- Housing material: Polycarbonate fiber reinforced
- Colour: Grey
- Weight per Piece (excluding packing): 330 g
- Part Number 1153078
- Customs tariff number: 85176200
- Country of origin: DE
